Michigan Wheel Aqualube Brass Cutlass Bearings – Imperial Sizes

ID 1366927

$ 107.18

1-2 weeks delivery time

Shaft Diameter:

3/4"
1"
1 1/2"
1 1/4"
1 1/8"
1 3/4"
1 3/8"
2"
2 1/2"
2 1/4"
2 3/4"
3"
3 1/2"
4"

Stern Tube Diameter:

1 1/2"
1 1/4"
1 3/4"
1 3/8"
1 5/8"
1 7/8"
2 3/8"
2 5/8"
2"
3 1/2"
3 1/4"
3 1/8"
3 3/4"
3 3/8"
3"
4 1/2"
4 1/4"
4"
5"

Length, mm:

8"
10"
3"
4"
4 1/2"
5"
5 1/2"
6"
7"
9"
11"
12"
14"
16"

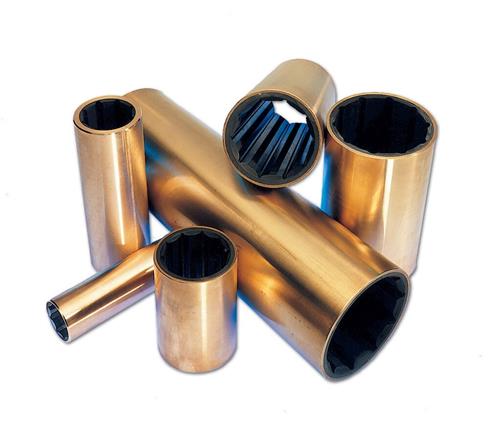

The Michigan Wheel Aqualube brass cutlass bearing is a water-lubricated shaft bearing for marine propulsion systems. Available in imperial sizes with shaft diameters from 3/4" to 4", outer diameters from 1 1/4" to 5", and lengths from 3" to 16". Features a marine bronze shell with nitrile rubber lining for high abrasion resistance, vibration damping, and hydrodynamic water film lubrication.

Description
Ask a Question

Michigan Wheel Aqualube Brass Cutlass Bearing – Imperial Sizes, 3/4"–4" Shaft, Water Lubricated

The Michigan Wheel Aqualube cutlass bearing is designed for marine propulsion systems, providing reliable shaft support while reducing friction, vibration, and wear.

The bearing features a marine bronze shell combined with a nitrile rubber lining, ensuring durability and resistance to abrasion in demanding marine environments.

Water lubrication is achieved through longitudinal grooves in the rubber lining, allowing a hydrodynamic water film to form between the shaft and the bearing surface. This prevents direct contact and ensures smooth operation even at low shaft speeds. :contentReference[oaicite:0]{index=0}

Key Features

Water-lubricated cutlass bearing
Marine bronze shell construction
Nitrile rubber lining
High resistance to abrasion and wear
Reduces vibration and noise
Hydrodynamic water film lubrication
Suitable for marine propulsion systems

Technical Specifications

Shaft (ID)	Outer Diameter (OD)	Length
3/4"	1 1/4"	3"
1"	1 1/4"	4"
1"	1 1/2"	4"
1"	1 3/8"	4"
1 1/8"	1 5/8"	4 1/2"
1 1/4"	1 3/4"	5"
1 1/4"	2"	5"
1 1/4"	1 1/2"	5"
1 3/8"	1 7/8"	5 1/2"
1 1/2"	2"	6"
1 1/2"	2 3/8"	6"
1 3/4"	2 3/8"	7"
1 3/4"	2 5/8"	7"
2"	2 5/8"	8"
2"	3"	8"
2 1/4"	3"	9"
2 1/4"	3 1/8"	9"
2 1/2"	3 1/4"	10"
2 1/2"	3"	10"
2 1/2"	3 3/8"	10"
2 1/2"	3 1/8"	10"
2 3/4"	3 1/2"	11"
3"	4"	12"
3"	3 3/4"	12"
3 1/2"	4 1/4"	14"
3 1/2"	4 1/2"	14"
4"	5"	16"

Aqualube bearings use water as a lubricant to create a hydrodynamic wedge between the shaft and the bearing, reducing wear and improving efficiency in marine applications.
