Michigan Wheel Aqualube Brass Cutlass Bearing – Mixed Metric/Imperial Sizes

ID 1366911

$ 105.71

1-2 weeks delivery time

Shaft Diameter:

Stern Tube Diameter:

1 1/2"
1 1/4"
1 3/4"
1 3/8"
1 7/8"
2 1/8"
2 3/8"
2 5/8"
3 1/4"
3 3/4"
3"
4"

Length, mm:

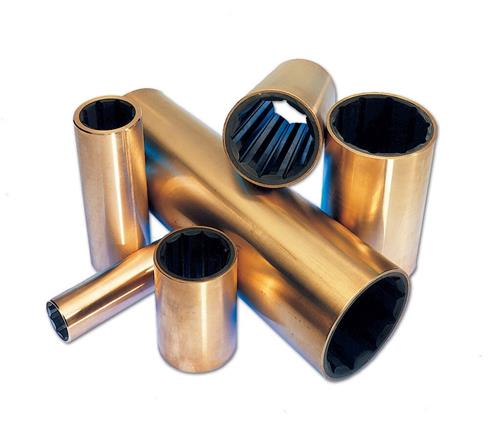

The Michigan Wheel Aqualube brass cutlass bearing is a water-lubricated shaft bearing designed for marine propulsion systems. Available in mixed metric/imperial sizes with shaft diameters from 20 mm to 80 mm, outer diameters from 1 1/4" to 4", and lengths from 80 mm to 320 mm. Features a marine bronze shell with nitrile rubber lining for high abrasion resistance, vibration damping, and hydrodynamic water film lubrication.

Description
Ask a Question

Michigan Wheel Aqualube Brass Cutlass Bearing – Mixed Metric/Imperial Sizes, 20–80 mm Shaft, Water Lubricated

The Michigan Wheel Aqualube cutlass bearing is a high-performance water-lubricated bearing designed for marine propulsion systems. It supports propeller shafts while reducing friction, vibration, and wear.

The bearing features a marine bronze shell combined with a specially formulated nitrile rubber lining, providing excellent resistance to abrasion and long service life in marine environments.

Water enters the bearing through longitudinal grooves, forming a hydrodynamic film between the shaft and the bearing surface. This prevents direct contact and ensures smooth operation even at low shaft speeds. :contentReference[oaicite:0]{index=0}

Key Features

Water-lubricated cutlass bearing
Marine bronze shell construction
Nitrile rubber lining
High resistance to abrasion and wear
Reduces vibration and noise
Hydrodynamic water lubrication
Suitable for marine propulsion systems

Technical Specifications

Shaft (ID)	Outer Diameter (OD)	Length
20 mm	1 1/4"	80 mm
22 mm	1 1/4"	88 mm
25 mm	1 1/2"	100 mm
25 mm	1 1/4"	100 mm
25 mm	1 3/8"	100 mm
30 mm	1 3/4"	120 mm
35 mm	1 7/8"	140 mm
40 mm	2 1/8"	160 mm
45 mm	2 3/8"	180 mm
50 mm	2 5/8"	200 mm
55 mm	3"	220 mm
60 mm	3"	240 mm
60 mm	3 1/4"	240 mm
70 mm	3 3/4"	280 mm
80 mm	4"	320 mm

Aqualube bearings use water as a lubricant, forming a hydrodynamic wedge between the shaft and the bearing surface, reducing wear and improving operational efficiency in marine applications.
