Exalto Brass Rubber Cutlass Bearings – Mixed Metric/Imperial Sizes

ID 1366841

$ 94.26

1-2 weeks delivery time

Shaft Diameter:

Stern Tube Diameter:

1 1/2''
1 3/4''
1 7/8''
2 1/8''
2 3/8''
2 5/8''

Length, mm:

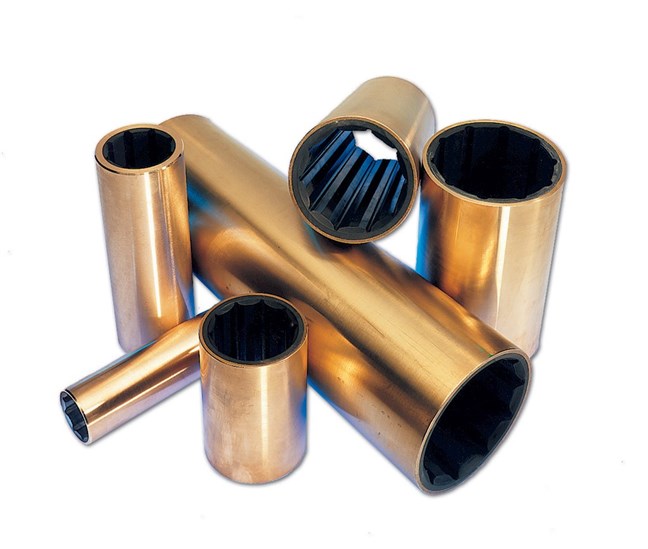

The Exalto brass rubber cutlass bearing is a water-lubricated shaft bearing for marine propulsion systems. Available in mixed metric/imperial sizes with shaft diameters from 25 mm to 50 mm, outer diameters from 1 1/2" to 2 5/8", and lengths from 98 mm to 200 mm. Features a bronze shell with rubber lining for reduced friction, wear resistance, and smooth shaft operation.

Description
Ask a Question

Exalto Brass Rubber Cutlass Bearing – Mixed Metric/Imperial Sizes, 25–50 mm Shaft, Water Lubricated

The Exalto rubber cutlass bearing is designed for marine propulsion systems, providing reliable shaft support while reducing friction, vibration, and wear.

The bearing features a bronze outer shell for strength and corrosion resistance, combined with a rubber lining that ensures smooth shaft rotation and long service life.

Designed for mixed unit installations, these bearings combine metric shaft sizes with imperial housing diameters, making them suitable for a wide range of marine configurations.

Key Features
- Water-lubricated cutlass bearing
- Bronze shell construction
- Rubber lining
- Reduced friction and wear
- Supports smooth shaft rotation
- Compatible with mixed metric/imperial systems
- Suitable for marine propulsion systems
Technical Specifications

Shaft (ID) Shaft Tube (OD) Length

25 mm 1 1/2" 100 mm

30 mm 1 3/4" 120 mm

35 mm 1 7/8" 140 mm

40 mm 2 1/8" 160 mm

45 mm 2 3/8" 180 mm

50 mm 2 5/8" 200 mm

50 mm 2 5/8" 98 mm

Catalog References
- 71208, 71910, 71920, 71930, 71940
- 71950, 71960, 71970, 71980, 71990
- 71208.001, 71910.001, 71920.001, 71930.001
- 71940.001, 71950.001, 71960.001, 71970.001
- 71980.001, 71990.001
These bearings should be selected based on shaft diameter, housing size, and required length for proper installation and optimal performance.
