Exalto Brass Rubber Cutlass Bearing – Imperial Sizes

ID 1366849

$ 94.26

1-2 weeks delivery time

Shaft Diameter:

3/4''
1 1/2''
1 1/4''
1 3/4''
1''
2 1/2''
2 3/4''
3''

Stern Tube Diameter:

1 1/2''
1 1/4''
1 3/4''
2 3/8''
2 5/8''
2''
3 1/4''
3 3/4''
4''

Length, mm:

3''
4''
5''
6''
7''
10''
11''
12''
2''

The Exalto brass rubber cutlass bearing is a water-lubricated shaft bearing for marine propulsion systems. Available in imperial sizes with shaft diameters from 3/4" to 3", outer diameters from 1 1/4" to 4", and lengths from 2" to 12". Features a bronze shell with rubber lining for wear resistance, reduced friction, and smooth shaft operation.

Description
Ask a Question

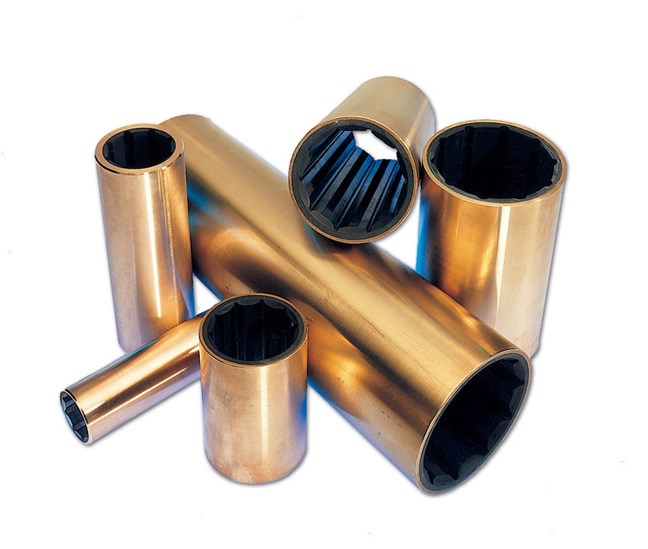

Exalto Brass Rubber Cutlass Bearing – Imperial Sizes, 3/4"–3" Shaft, Water Lubricated

The Exalto rubber cutlass bearing is designed to support propeller shafts in marine propulsion systems while reducing friction, vibration, and wear.

The bearing is constructed with a bronze outer shell for strength and corrosion resistance, combined with a rubber lining that provides excellent wear resistance and smooth shaft rotation.

Water lubrication allows a thin film to form between the shaft and the bearing surface, ensuring reliable operation and minimizing direct contact during use.

Key Features

Water-lubricated cutlass bearing
Bronze shell construction
Rubber lining
Reduced friction and wear
Supports smooth shaft rotation
Suitable for marine propulsion systems

Technical Specifications

Shaft (ID)	Shaft Tube (OD)	Length
3/4"	1 1/4"	3"
1"	1 1/2"	4"
1"	1 1/2"	2"
1 1/4"	1 3/4"	5"
1 1/4"	2"	5"
1 1/2"	2"	6"
1 3/4"	2 3/8"	7"
1 3/4"	2 5/8"	7"
2 1/2"	3 1/4"	10"
2 3/4"	3 3/4"	11"
3"	4"	12"

Catalog References

71604, 71608, 71610, 71612, 71617, 71620, 71621
71630, 71644, 71645, 71651, 71654, 71660, 71661
71669, 71680, 71681, 71690, 71691, 71700, 71701
71710, 71711, 71720, 71721, 71722
71604.001, 71608.001, 71610.001, 71612.001
71617.001, 71620.001, 71621.001, 71630.001
71644.001, 71645.001, 71651.001, 71654.001
71660.001, 71661.001, 71669.001, 71680.001
71681.001, 71690.001, 71691.001, 71700.001
71701.001, 71710.001, 71711.001, 71720.001
71721.001, 71722.001

These bearings provide a durable and efficient solution for supporting propeller shafts in marine environments and should be selected based on shaft diameter, housing size, and required length.
