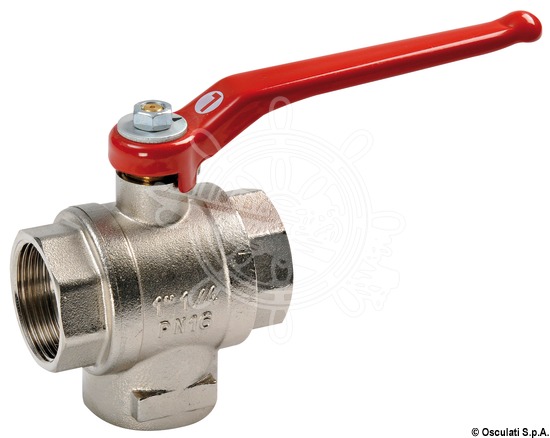

Osculati Nickel-Plated Brass 3-Way Diverter Ball Valve, Full Port, L-Port, 3/8" to 1-1/2"

ID 1374639

$ 45.95

1-2 weeks delivery time

Size:

3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"

The Osculati 17.229 Series 3-Way Diverter Ball Valves are manufactured from nickel-plated brass and feature a red-coated steel operating lever. Designed with a full-port L-port flow configuration, these valves are suitable for water systems, gasoline, heating systems, and other non-corrosive fluids. Operating temperature range is from -10°C to +100°C. Available in thread sizes from 3/8" to 1-1/2".

Description
Ask a Question

Osculati 17.229 Series – Nickel-Plated Brass 3-Way Diverter Ball Valve, Full Port, L-Port, 3/8" to 1-1/2"

The Osculati 17.229 Series 3-Way Diverter Ball Valves are designed for flow diversion and distribution in fluid systems. Manufactured from nickel-plated brass, these valves feature a full-port internal passage and an L-port operating configuration, allowing the user to direct flow between different circuit paths.

The valves are equipped with a red-coated steel operating lever and are suitable for water systems, gasoline, heating installations, and other non-corrosive fluid applications. The operating temperature range extends from -10°C to +100°C.

Key Features

Nickel-plated brass body
3-way diverter valve design
Full-port passage for unrestricted flow
L-port flow configuration
Red-coated steel operating lever
Operating temperature from -10°C to +100°C
Suitable for water, gasoline, heating systems, and non-corrosive fluids

Available Variants

Osculati Code	Type	Passage	Operation	Thread Size
17.229.00	3-Way Diverter	Full Port	L-Port	3/8"
17.229.01	3-Way Diverter	Full Port	L-Port	1/2"
17.229.02	3-Way Diverter	Full Port	L-Port	3/4"
17.229.03	3-Way Diverter	Full Port	L-Port	1"
17.229.04	3-Way Diverter	Full Port	L-Port	1-1/4"
17.229.05	3-Way Diverter	Full Port	L-Port	1-1/2"

Applications

Water distribution systems
Fuel and gasoline systems
Heating installations
Flow diversion systems
Fluid routing applications
Industrial and marine plumbing systems
Non-corrosive fluid transfer systems

Technical Specifications

Property	Specification
Material	Nickel-Plated Brass
Handle Material	Red-Coated Steel
Valve Type	3-Way Diverter Ball Valve
Passage Type	Full Port
Flow Configuration	L-Port
Operating Temperature	-10°C to +100°C
Available Sizes	3/8" to 1-1/2"
Suitable Media	Water, Gasoline, Heating Fluids, Non-Corrosive Fluids
