ID
1374653
$ 600.18
1-2 weeks delivery time
Size:
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"
The Osculati 17.240 Series Remote Electrocontrolled Ball Valves are manufactured from nickel-plated brass and feature a full-flow design with a reversible 24V electric servomotor. Designed for remote operation, the system includes an ON-OFF control panel with safety fuse and allows control of up to 10 valves simultaneously. With a 14-second operating time, emergency manual override compliant with ISO 228, and protection ratings up to IP65, these PN40 valves are available in sizes from 1/2" to 2".
- Description
- Ask a Question
-

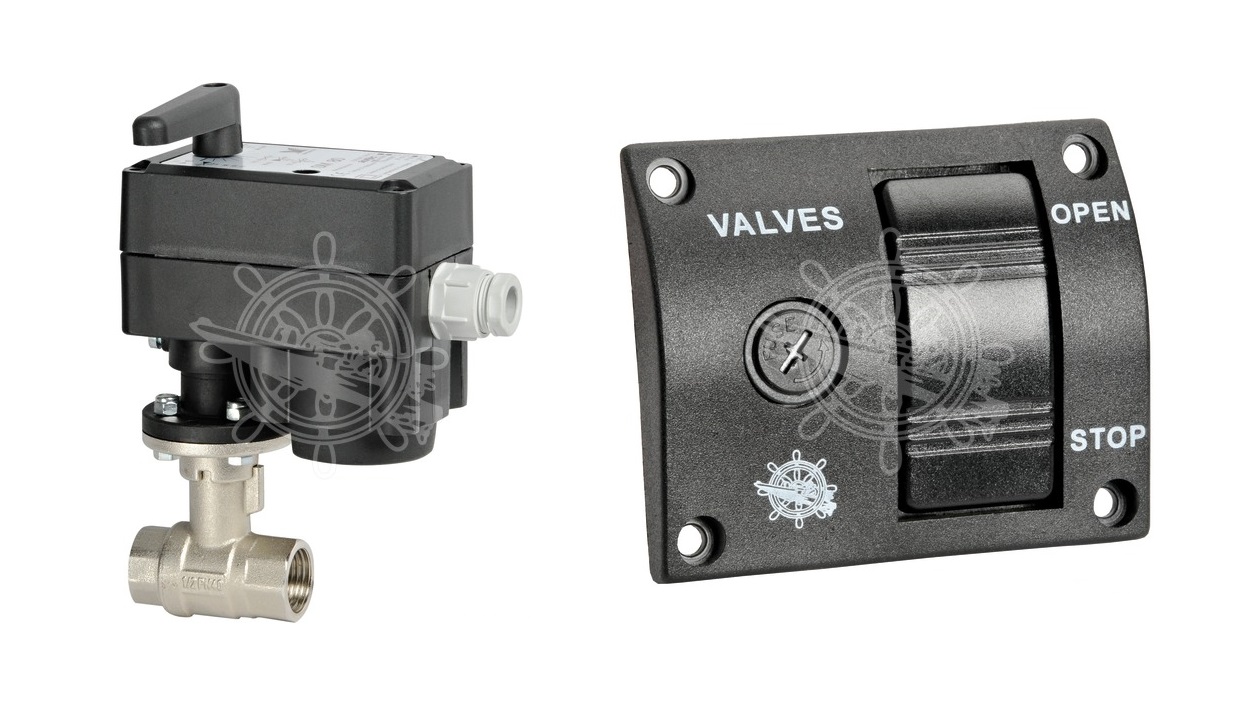

Osculati 17.240 Series – Remote Electrocontrolled Full Flow Ball Valve with Control Panel, PN40, 24V, 1/2" to 2"
The Osculati 17.240 Series Remote Electrocontrolled Ball Valves are designed for remote operation of fluid systems in marine and industrial applications. Manufactured from nickel-plated brass, these PN40-rated valves feature a full-flow ball valve and a reversible 24V electric servomotor.
The supplied ON-OFF control panel includes a safety fuse and supports operation of up to 10 valves simultaneously. The actuator incorporates emergency manual control compliant with ISO 228 requirements, allowing operation in the event of power loss.
The actuator completes a full opening or closing cycle in approximately 14 seconds and is available with IP42 or IP65 protection depending on valve size.
Key Features
- Nickel-plated brass full-flow ball valve
- Reversible 24V electric servomotor
- PN40 pressure rating
- ON-OFF remote control panel included
- Safety fuse integrated into control panel
- Control of up to 10 valves simultaneously
- 14-second opening/closing cycle
- Emergency manual override compliant with ISO 228
- Protection rating up to IP65
Available Variants (Valve with Control Panel)
Osculati Code Thread Voltage Ø (mm) S (mm) P (mm) H (mm) L (mm) D (mm) Power (W) Protection 17.240.02 1/2" 24V 15 56 125 162 100 62 4 IP42 17.240.03 3/4" 24V 20 66 125 165 100 62 4 IP42 17.240.04 1" 24V 25 75 125 171 100 62 4 IP42 17.240.05 1-1/4" 24V 32 85 195 181 137 92 15 IP65 17.240.06 1-1/2" 24V 39 97 195 187 137 92 15 IP65 17.240.07 2" 24V 48 109 195 195 137 92 15 IP65
Control Panel Specifications
Property Specification Control Panel Code 17.240.00 Panel Dimensions 75 x 60 mm Control Type ON-OFF Safety Fuse Included Maximum Controlled Valves 10
Applications
- Remote seawater shut-off systems
- Engine room installations
- Marine plumbing systems
- Tank management systems
- Industrial fluid control systems
- Remote valve operation applications
Technical Information
Property Specification Valve Material Nickel-Plated Brass Pressure Rating PN40 Motor Type Reversible Electric Servomotor Operating Voltage 24V DC Operation Time 14 Seconds Manual Override Yes, ISO 228 Compliant Available Sizes 1/2" to 2" -
