Osculati Nickel-Plated Brass 3-Way Ball Valve, T-Port Reduced Bore, 3/8" to 1-1/2"

ID 1374646

$ 45.95

1-2 weeks delivery time

Size:

3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"

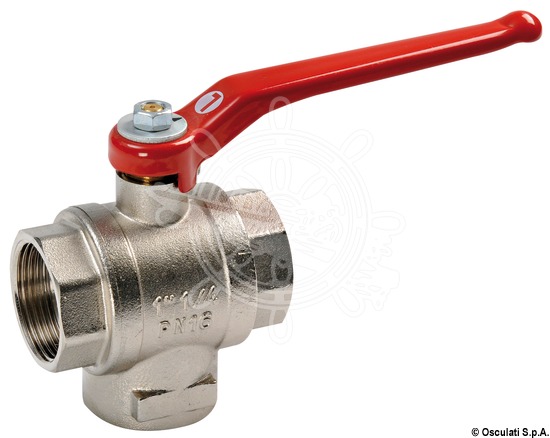

The Osculati 17.229.20-25 Series 3-Way Ball Valves are manufactured from nickel-plated brass and feature a red-coated steel operating lever. Designed with a T-port flow configuration and reduced bore passage, these valves are suitable for water systems, gasoline, heating installations, and non-corrosive fluids. Operating temperature range is from -10°C to +100°C. Available in thread sizes from 3/8" to 1-1/2".

Description
Ask a Question

Osculati 17.229.20-25 – Nickel-Plated Brass 3-Way Ball Valve, T-Port Reduced Bore, 3/8" to 1-1/2"

The Osculati 17.229.20-25 Series 3-Way Ball Valves are designed for fluid distribution and diversion applications requiring multiple flow paths. Manufactured from nickel-plated brass, these valves feature a T-port internal configuration and reduced bore passage.

Equipped with a red-coated steel operating lever, the valves are suitable for water systems, gasoline, heating installations, and other non-corrosive fluids. The T-port design allows multiple routing configurations, making these valves suitable for complex plumbing and fluid management systems.

Key Features

Nickel-plated brass body
3-way valve configuration
T-port flow design
Reduced bore passage
Red-coated steel operating lever
Operating temperature from -10°C to +100°C
Suitable for water, gasoline, heating systems, and non-corrosive fluids

Available Variants

Osculati Code	Type	Passage	Operation	Thread Size
17.229.20	3-Way	Reduced	T-Port	3/8"
17.229.21	3-Way	Reduced	T-Port	1/2"
17.229.22	3-Way	Reduced	T-Port	3/4"
17.229.23	3-Way	Reduced	T-Port	1"
17.229.24	3-Way	Reduced	T-Port	1-1/4"
17.229.25	3-Way	Reduced	T-Port	1-1/2"

Applications

Water distribution systems
Fuel and gasoline systems
Heating installations
Fluid diversion and mixing systems
Industrial and marine plumbing systems
Non-corrosive fluid handling applications

Technical Specifications

Property	Specification
Material	Nickel-Plated Brass
Handle Material	Red-Coated Steel
Valve Type	3-Way Ball Valve
Passage Type	Reduced Bore
Flow Configuration	T-Port
Operating Temperature	-10°C to +100°C
Available Sizes	3/8" to 1-1/2"
Suitable Media	Water, Gasoline, Heating Fluids, Non-Corrosive Fluids
