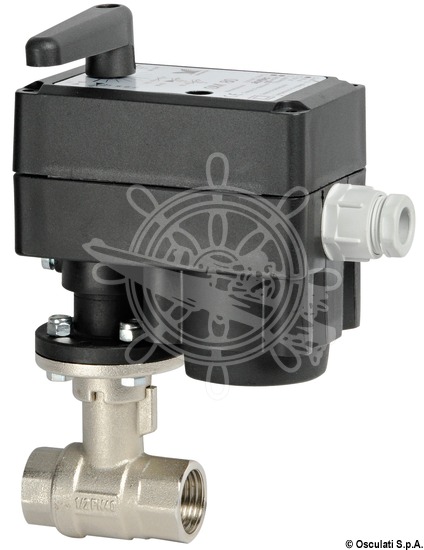

The Osculati 17.241 Series Remote Electrocontrolled Ball Valves are manufactured from nickel-plated brass and feature a full-flow design with a reversible 24V electric servomotor. Designed for integration with remote control systems, the valves provide a 14-second opening/closing cycle and include emergency manual override compliant with ISO 228. Available in sizes from 1/2" to 2", with protection ratings up to IP65 depending on model.
- Description
- Ask a Question
-
Osculati 17.241 Series – Remote Electrocontrolled Full Flow Ball Valve, PN40, 24V, 1/2" to 2"
The Osculati 17.241 Series Remote Electrocontrolled Ball Valves are designed for automated fluid control applications in marine and industrial systems. Manufactured from nickel-plated brass, these valves combine a full-flow ball valve body with a reversible electric servomotor for reliable remote operation.
The actuator completes a full opening or closing cycle in approximately 14 seconds and incorporates an emergency manual override system compliant with ISO 228 requirements. These valves are intended for integration with compatible remote control panels and automation systems.
Key Features
- Nickel-plated brass full-flow ball valve
- Reversible electric servomotor
- 24V operating voltage
- PN40 pressure rating
- 14-second opening/closing cycle
- Emergency manual override compliant with ISO 228
- Available with IP42 or IP65 actuator protection
- Suitable for remote-controlled installations
Available Variants (Valve Only)
Osculati Code Thread Voltage Ø (mm) S (mm) P (mm) H (mm) L (mm) D (mm) Power (W) Protection 17.241.02 1/2" 24V 15 56 125 162 100 62 4 IP42 17.241.03 3/4" 24V 20 66 125 165 100 62 4 IP42 17.241.04 1" 24V 25 75 125 171 100 62 4 IP42 17.241.05 1-1/4" 24V 32 85 195 181 137 92 15 IP65 17.241.06 1-1/2" 24V 39 97 195 187 137 92 15 IP65 17.241.07 2" 24V 48 109 195 195 137 92 15 IP65
Applications
- Remote-controlled fluid systems
- Marine plumbing installations
- Engine room shut-off systems
- Tank management systems
- Automated water control systems
- Industrial fluid handling installations
Technical Specifications
Property Specification Valve Material Nickel-Plated Brass Pressure Rating PN40 Motor Type Reversible Electric Servomotor Voltage 24V Operating Time 14 Seconds Manual Override Yes, ISO 228 Compliant Available Sizes 1/2" to 2" -
