Osculati Cast Brass Male Hose Connector, 1/4" to 4", 8–100 mm Hose Tail

ID 1374667

$ 3.04

1-2 weeks delivery time

Size:

1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
2 1/2"
3"
4"

Item:

38 mm
50 mm
76 mm
60 mm
8 mm
10 mm
12 mm
13 mm
15 mm
16 mm
18 mm
20 mm
25 mm
30 mm
32 mm
35 mm
45 mm
40 mm
80 mm
100 mm
70 mm
39 mm

The Osculati 17.198 Series Male Hose Connectors are manufactured from cast brass and designed for marine and industrial fluid transfer systems. Featuring male threaded connections from 1/4" to 4" and hose tail sizes from 8 mm to 100 mm, these fittings provide a secure connection between threaded ports and flexible hoses for water, fuel, and general plumbing applications.

Description
Ask a Question

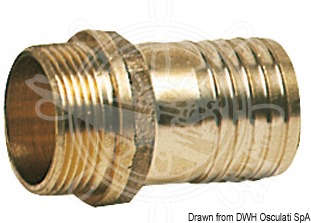

Osculati 17.198 Series – Cast Brass Male Hose Connector, 1/4" to 4", 8–100 mm Hose Tail

The Osculati 17.198 Series Male Hose Connectors are manufactured from cast brass and designed to connect flexible hoses to threaded plumbing systems. The hose tail design provides secure hose retention, while the threaded connection allows installation into compatible valves, pumps, tanks, filters, and marine plumbing components.

The series covers a wide range of thread sizes and hose diameters, making it suitable for water systems, fuel systems, bilge installations, cooling circuits, and general marine plumbing applications.

Key Features

Cast brass construction
Male threaded connection
Integrated hose tail adaptor
Suitable for flexible hose installation
Wide range of thread and hose sizes
Suitable for marine and industrial plumbing systems

Available Variants

Osculati Code	Thread	Hose Tail Ø
17.198.01	1/4"	8 mm
17.198.02	1/4"	10 mm
17.198.38	1/4"	12 mm
17.198.03	1/4"	13 mm
17.198.04	3/8"	10 mm
17.198.40	3/8"	12 mm
17.198.05	3/8"	13 mm
17.198.06	3/8"	15 mm
17.198.39	3/8"	16 mm
17.198.41	3/8"	20 mm
17.198.42	1/2"	12 mm
17.198.07	1/2"	13 mm
17.198.43	1/2"	15 mm
17.198.08	1/2"	16 mm
17.198.49	1/2"	18 mm
17.198.09	1/2"	20 mm
17.198.45	1/2"	25 mm
17.198.32	3/4"	13 mm
17.198.10	3/4"	16 mm
17.198.48	3/4"	18 mm
17.198.11	3/4"	20 mm
17.198.12	3/4"	25 mm
17.198.47	3/4"	30 mm
17.198.13	1"	20 mm
17.198.14	1"	25 mm
17.198.15	1"	30 mm
17.198.31	1"	32 mm
17.198.16	1-1/4"	30 mm
17.198.17	1-1/4"	35 mm
17.198.18	1-1/4"	39 mm
17.198.33	1-1/4"	40 mm
17.198.19	1-1/2"	38 mm
17.198.29	1-1/2"	40 mm
17.198.20	1-1/2"	45 mm
17.198.30	1-1/2"	50 mm
17.198.21	2"	50 mm
17.198.22	2"	60 mm
17.198.23	2-1/2"	60 mm
17.198.24	2-1/2"	70 mm
17.198.34	3"	76 mm
17.198.25	3"	80 mm
17.198.26	4"	100 mm

Applications

Marine plumbing systems
Bilge and drainage installations
Water distribution systems
Fuel transfer systems
Pump and filter connections
Cooling water circuits
General hose-to-thread connections

Technical Information

Property	Specification
Material	Cast Brass
Connection Type	Male Thread x Hose Tail
Thread Range	1/4" to 4"
Hose Tail Range	8 mm to 100 mm
