Item:
- Black Dial & Black Bezel
- Black Dial & Glossy Bezel
- White Dial & Glossy Bezel
The Osculati Trim Indicators are marine dashboard instruments designed to display trim position using 0–190 Ohm sender signals. The gauges operate on 12V or 24V electrical systems and feature red and yellow backlit dials for clear visibility in low-light conditions. The series includes versions with black or white dial options and black or glossy bezel finishes. All models share standard installation dimensions with a 57 mm outer diameter, 51 mm panel hole diameter, and 45 mm installation depth, allowing easy integration into marine dashboards and control panels.
- Description
- Ask a Question
-

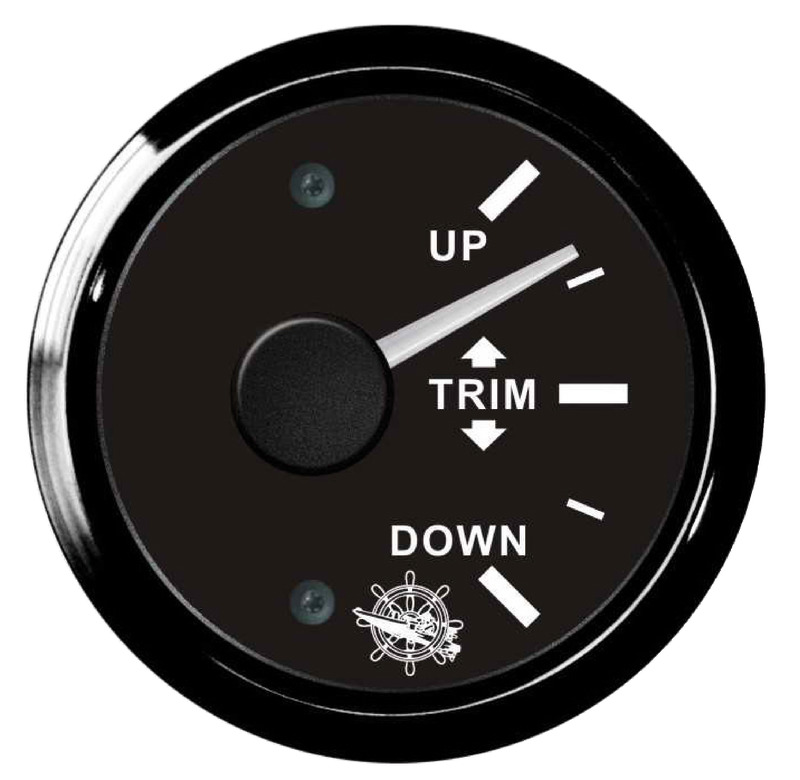

Osculati Trim Indicators – 0–190 Ohm Marine Trim Gauge 12/24V, Ø57 mm
The Osculati Trim Indicators are marine instruments designed to display the trim position of propulsion systems on boats and marine vessels. These gauges are compatible with 0–190 Ohm sender signals, a commonly used resistance standard in marine trim monitoring systems.
The instruments operate on 12V or 24V electrical systems and feature analog displays with red and yellow dial backlighting for clear readability in low-light environments. The series includes different dial colors and bezel finishes to match various dashboard designs while maintaining a compact marine instrument size.
All models share standard marine installation dimensions, allowing easy mounting in dashboards and control panels used for propulsion monitoring systems.
Key Features
- Trim indicators for marine propulsion systems
- Compatible with 0–190 Ohm sender signals
- Suitable for 12V and 24V electrical systems
- Red and yellow backlit dial for improved visibility
- Black or white dial options
- Black or glossy bezel finishes
- Compact marine dashboard instrument
- Standard Ø57 mm installation size
Available Variants
Item Dial / Bezel Signal Voltage Instrument Ø Hole Ø Depth (P) 27.320.20 Black dial, black bezel 0–190 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.321.20 Black dial, glossy bezel 0–190 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.322.20 White dial, glossy bezel 0–190 Ω 12 / 24 V 57 mm 51 mm 45 mm
Installation Dimensions
- Instrument diameter: 57 mm
- Panel hole diameter: 51 mm
- Installation depth (P): 45 mm
-
