SeaSure 00.29 is a 25 mm swivel Mini block from SeaSure’s plain bearing range, manufactured with marine-grade stainless steel side plates and rivets and a hard-wearing Arnite plastic sheave. It accepts ropes up to 8 mm and has a breaking load of 700 kg. The integral swivel allows the block to follow changes in the incoming rope direction so the rope does not twist and bind during operation.
- Description
- Ask a Question
-

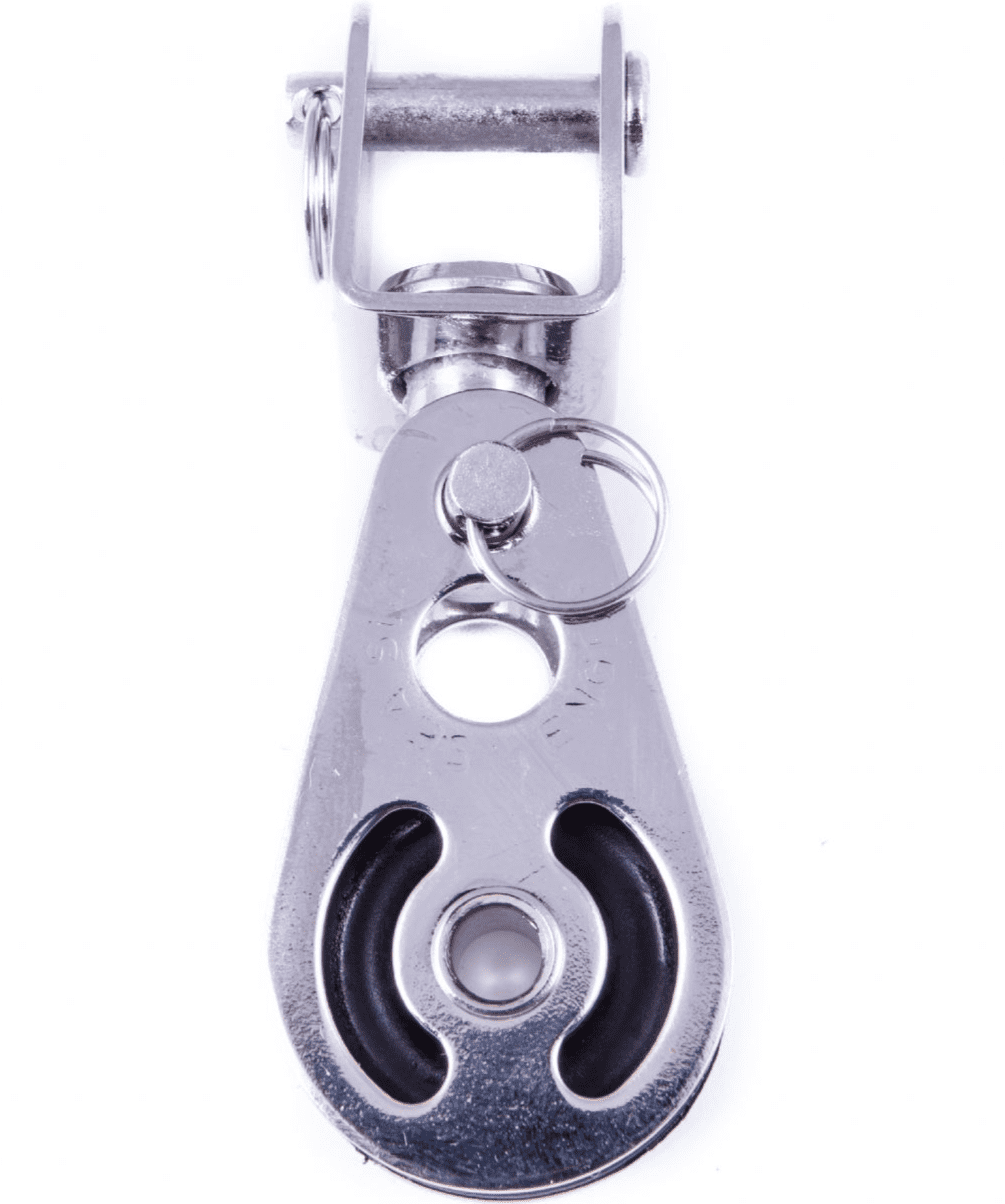

SeaSure 00.29 25 mm Plain Bearing Swivel Mini Block
SeaSure 00.29 is a 25 mm swivel block from the SeaSure Mini plain bearing range. It is manufactured with marine-grade stainless steel side plates and rivets and uses a hard-wearing Arnite plastic sheave.
The block is suitable for ropes up to 8 mm in diameter and has a breaking load of 700 kg.
The integral swivel allows the block to follow changes in the direction of the incoming rope. This helps prevent the rope from twisting and binding as the working angle changes.
The SeaSure 25 mm plain bearing range can be used in pulley systems for lifting, garage door mechanisms and storage solutions.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.29
- Product type: Swivel Mini block
- Series: Mini
- Sheave size: 25 mm
- Sheave material: Arnite plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Bearing type: Plain bearing
- Swivel: Yes
- Maximum rope diameter: 8 mm
- Breaking load: 700 kg
Typical Applications
- Lifting pulley systems
- Garage door mechanisms
- Storage solutions
Technical Specifications
Parameter Specification Manufacturer Article 00.29 Series Mini Size 25 mm Maximum Rope Diameter 8 mm Sheave Material Arnite plastic Side Plate Material Marine-grade stainless steel Bearing Type Plain bearing Swivel Yes Breaking Load 700 kg -
