ID
1393797
$ 267.93
1-2 weeks delivery time
-
+
SeaSure 00.25 is a 25 mm double Mini block with integrated V-jammer and becket, manufactured with marine-grade stainless steel side plates and rivets and hard-wearing Arnite plastic sheaves. It accepts ropes up to 8 mm and can be used to create 4:1 or 5:1 purchase systems, while the V-jammer allows the rope to be locked off directly at the block. SeaSure states a breaking load of 1000 kg; the supplied catalogue data additionally lists MBS 750 kg and SWL 375 kg.
- Description
- Ask a Question
-

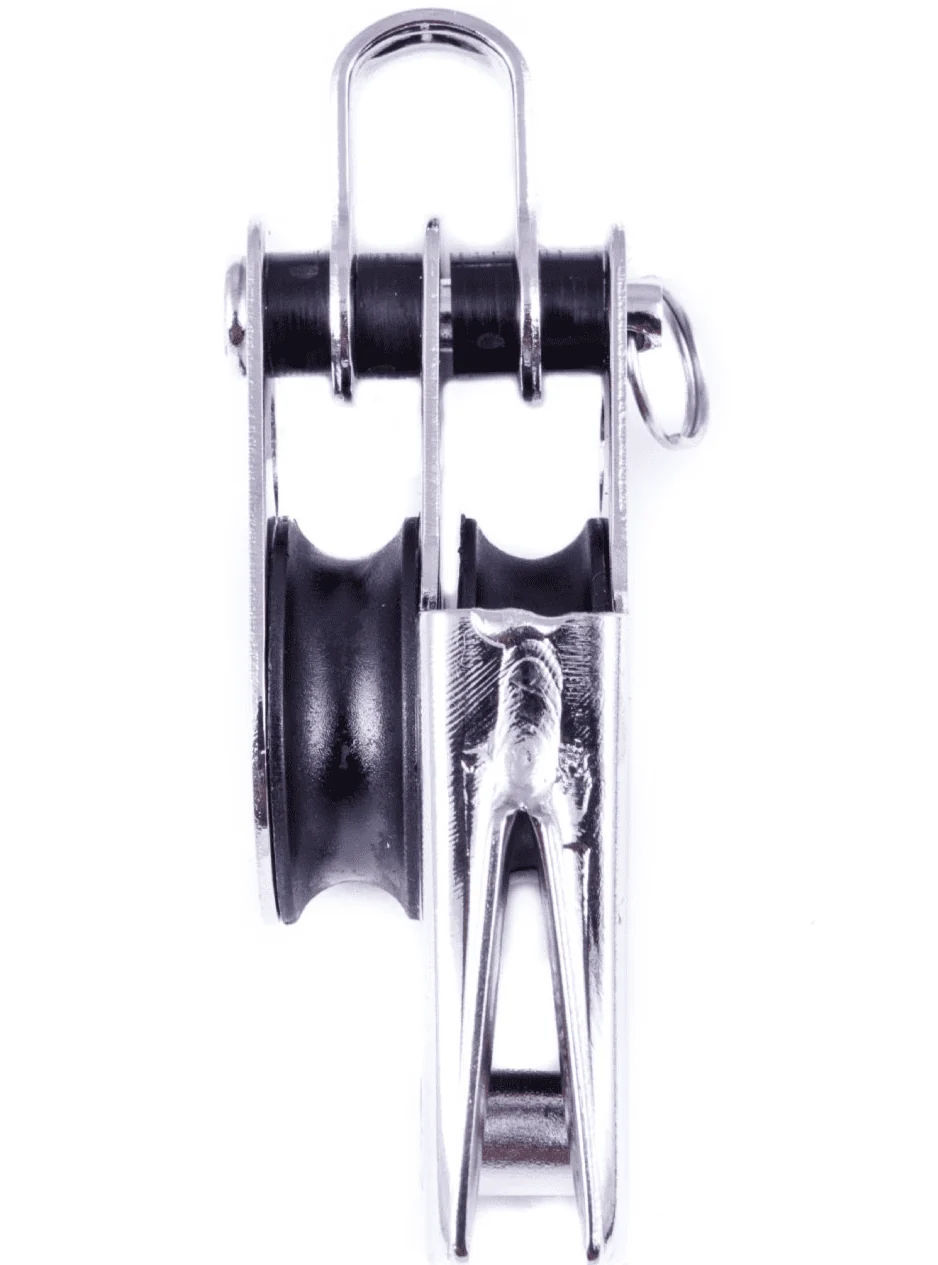

SeaSure 00.25 25 mm Plain Bearing Double Mini Block with V-Jammer and Becket
SeaSure 00.25 is a 25 mm double block from the SeaSure Mini plain bearing range. It is manufactured with marine-grade stainless steel side plates and rivets and uses hard-wearing Arnite plastic sheaves.
The block is suitable for ropes up to 8 mm in diameter. Its double-sheave configuration can be used to create 4:1 or 5:1 purchase systems for lifting heavier objects and reducing the load on the rope.
An integrated V-jammer allows the rope to be locked off directly at the block, while the becket provides an additional attachment point within the purchase system.
SeaSure states a breaking load of 1000 kg for the 00.25 block. The supplied catalogue specification separately lists an MBS of 750 kg and an SWL of 375 kg.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.25
- Product type: Double Mini block with V-jammer and becket
- Series: Mini OBS
- Block type: Fixed
- Sheave size: 25 mm
- Number of sheaves: 2
- Sheave material: Arnite plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Bearing type: Simple / plain bearing
- Maximum rope diameter: 8 mm
- Becket: Yes
- V-jammer / clamp: Yes
- MBS according to supplied catalogue data: 750 kg
- SWL according to supplied catalogue data: 375 kg
- Breaking load stated by SeaSure: 1000 kg
- Swivel: No
- Ratchet: No
- Colour: Stainless steel
Functional Features
- Can be used to create 4:1 or 5:1 purchase systems
- V-jammer allows the rope to be locked off at the block
- Becket provides an additional rope attachment point
Technical Specifications
Parameter Specification Manufacturer Article 00.25 Series Mini OBS Block Type Fixed Size 25 mm Number of Sheaves 2 Maximum Rope Diameter 8 mm Bearing Simple / plain bearing Becket Yes V-Jammer / Clamp Yes MBS – Supplied Catalogue Data 750 kg SWL – Supplied Catalogue Data 375 kg Breaking Load – SeaSure 1000 kg Swivel No Ratchet No Colour Stainless steel -
