ID
1393817
$ 192.75
1-2 weeks delivery time
-
+
SeaSure 01.01 is a 25 mm single block with shackle, designed for medium- to high-load applications with slow-running ropes. It uses a brass sheave with stainless steel side plates, while the shackle provides a simple removable attachment to an anchor point. The block has an MBS / breaking load of 950 kg and an SWL of 475 kg. SeaSure specifies a maximum rope diameter of 4 mm.
- Description
- Ask a Question
-

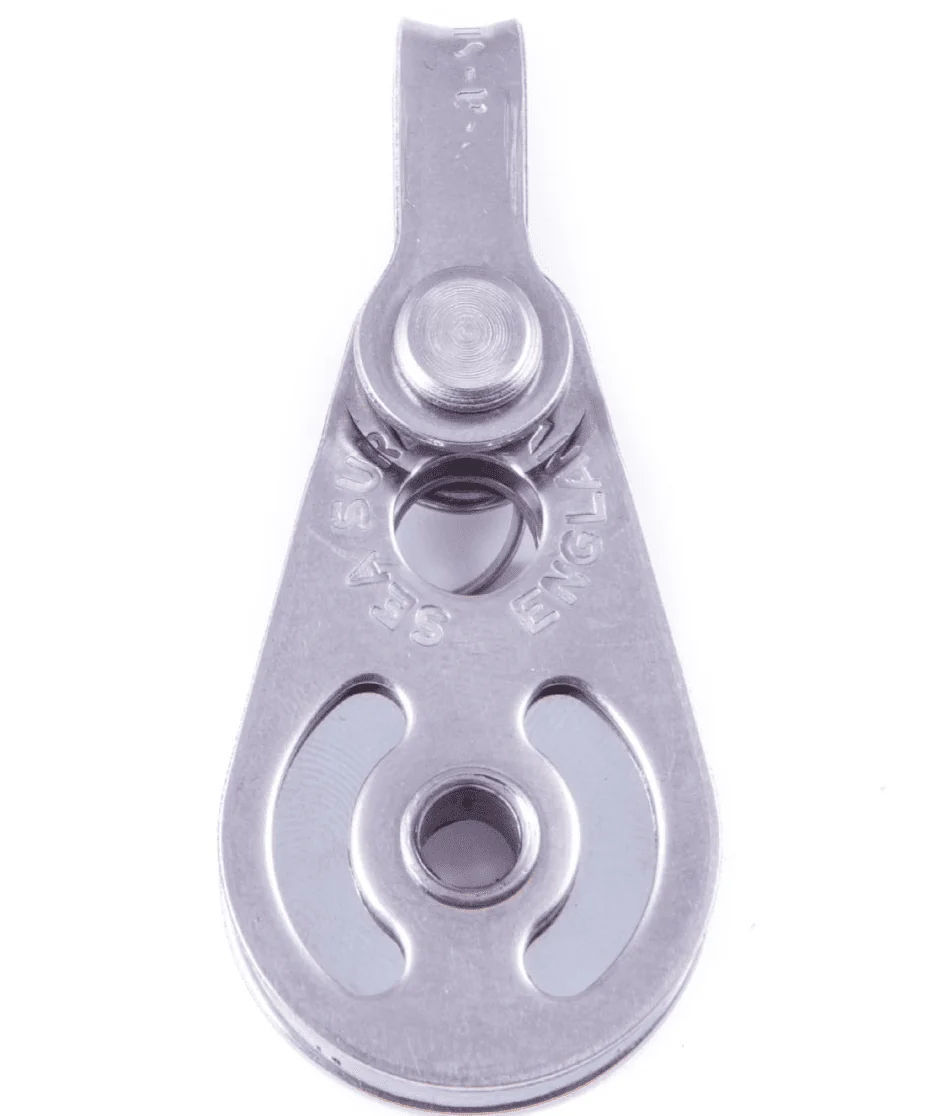

SeaSure 01.01 25 mm Brass Sheave Single Block with Shackle
SeaSure 01.01 is a 25 mm single block designed for medium- to high-load applications with slow-running ropes. Compared with the standard Mini block range, this block is intended to handle higher loads.
The block uses a brass sheave together with stainless steel side plates. SeaSure states that the stainless steel side plates help protect highly abrasive ropes from cutting in, while the brass sheave is suited to slow-running rope applications.
The integrated shackle allows the block to be moved easily or attached to a suitable anchor point. The block has a maximum breaking strength (MBS) of 950 kg and a safe working load (SWL) of 475 kg.
The supplied catalogue data specifies a maximum rope diameter of 5 mm, while SeaSure's product page lists a maximum rope diameter of 4 mm.
Product Features
- Brand: SeaSure
- Manufacturer article number: 01.01
- Product type: Single block with shackle
- Series: Mini
- Block type: D-lock
- Sheave size: 25 mm
- Sheave material: Brass
- Side plate material: Stainless steel
- Bearing type: Simple / plain bearing
- Attachment type: Shackle
- Maximum rope diameter: 5 mm according to supplied catalogue data
- Maximum rope diameter: 4 mm according to SeaSure
- Number of sheaves: 1
- MBS / breaking load: 950 kg
- SWL: 475 kg
- Swivel: No
- Ratchet: No
- Clamp: No
- Becket: No
- Colour: Stainless steel
Applications and Rope Types
- Medium- to high-load applications
- Slow-running ropes
- Commonly used with Dyneema lines
- Commonly used with Spectra lines
- Commonly used with Kevlar lines
Technical Specifications
Parameter Specification Manufacturer Article 01.01 Series Mini Block Type D-lock Size 25 mm Number of Sheaves 1 Sheave Material Brass Bearing Simple / plain bearing Maximum Rope Diameter – Supplied Catalogue Data 5 mm Maximum Rope Diameter – SeaSure 4 mm MBS / Breaking Load 950 kg SWL 475 kg Attachment Shackle Swivel No Ratchet No Clamp No Becket No Colour Stainless steel -
