ID
1393794
$ 57.60
1-2 weeks delivery time
Item:
- 1 pcs
- 5 pcs
SeaSure 00.23 is a 25 mm double Mini block with becket, built with marine-grade stainless steel side plates and rivets and hard-wearing Arnite plastic sheaves. It accepts ropes up to 8 mm and has a breaking load of 1000 kg. The double-sheave and becket configuration can be used to create 4:1 or 5:1 purchase systems, helping reduce rope load when lifting heavier objects.
- Description
- Ask a Question
-

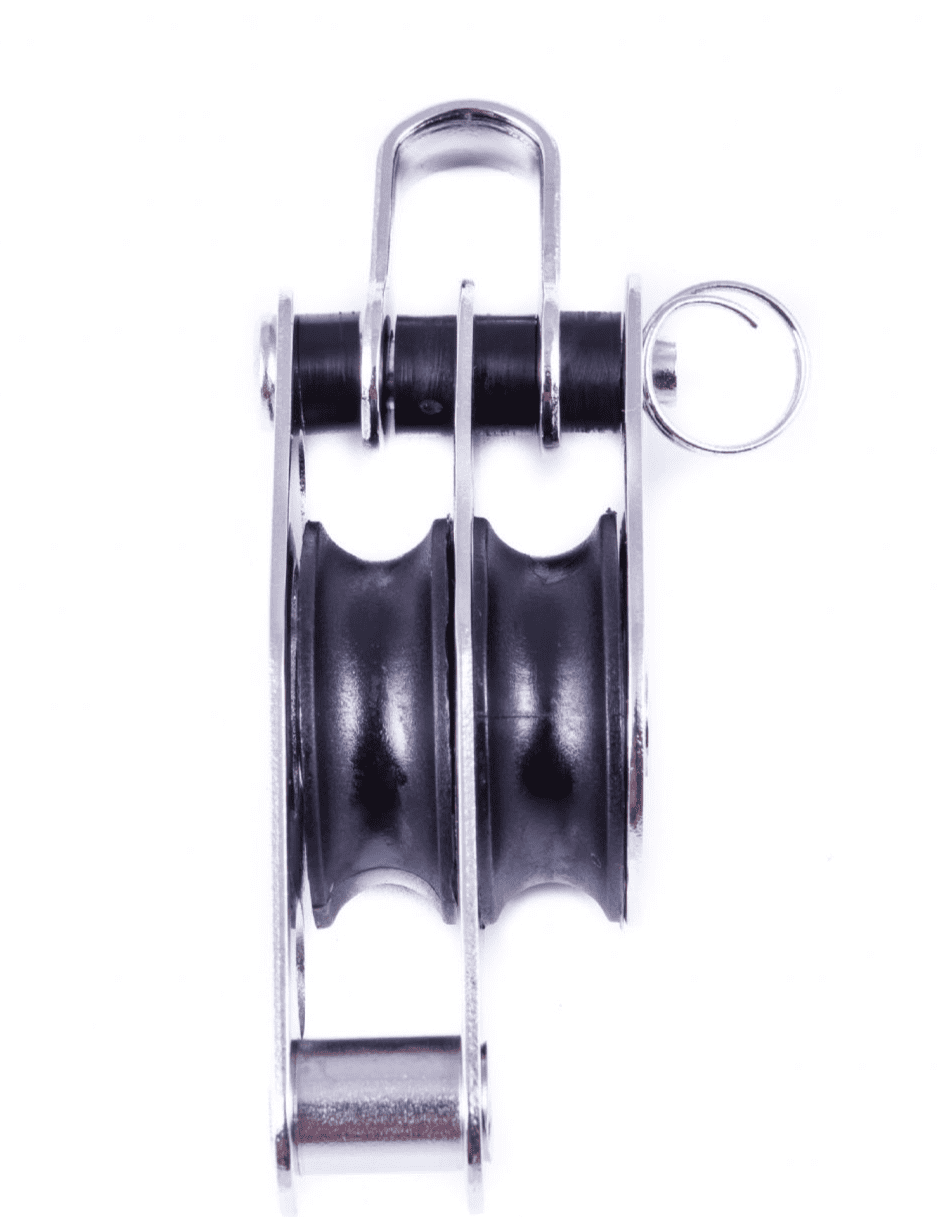

SeaSure 00.23 25 mm Plain Bearing Double Mini Block with Becket
SeaSure 00.23 is a 25 mm double block from the SeaSure Mini plain bearing range. It is manufactured with marine-grade stainless steel side plates and rivets and uses hard-wearing Arnite plastic sheaves.
The block is suitable for ropes up to 8 mm in diameter and has a breaking load of 1000 kg. Its double-sheave construction and integrated becket allow the block to form part of multi-part purchase systems.
The SeaSure 00.23 can be used to create 4:1 or 5:1 purchase systems, helping reduce the load on the rope when lifting heavier objects.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.23
- Product type: Double Mini block with becket
- Series: Mini
- Sheave size: 25 mm
- Number of sheaves: 2
- Sheave material: Arnite plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Bearing type: Plain bearing
- Becket: Yes
- Maximum rope diameter: 8 mm
- Breaking load: 1000 kg
- Suitable for 4:1 or 5:1 purchase systems
Typical Applications
- 4:1 purchase systems
- 5:1 purchase systems
- Lifting systems
- Garage door mechanisms
- Storage solutions
Technical Specifications
Parameter Specification Manufacturer Article 00.23 Series Mini Size 25 mm Number of Sheaves 2 Maximum Rope Diameter 8 mm Sheave Material Arnite plastic Side Plate Material Marine-grade stainless steel Bearing Type Plain bearing Becket Yes Breaking Load 1000 kg Purchase System 4:1 or 5:1 -
