ID
1393808
$ 63.64
1-2 weeks delivery time
-
+
SeaSure 00.35 is a 25 mm treble Mini block with integrated V-jammer and becket, manufactured with marine-grade stainless steel side plates and rivets and hard-wearing Arnite plastic sheaves. It accepts ropes up to 8 mm and has an MBS / breaking load of 1250 kg with an SWL of 625 kg. The three-sheave configuration can be used to create a 6:1 purchase system, while the V-jammer allows the rope to be cleated directly at the block for lifting or tensioning applications.
- Description
- Ask a Question
-

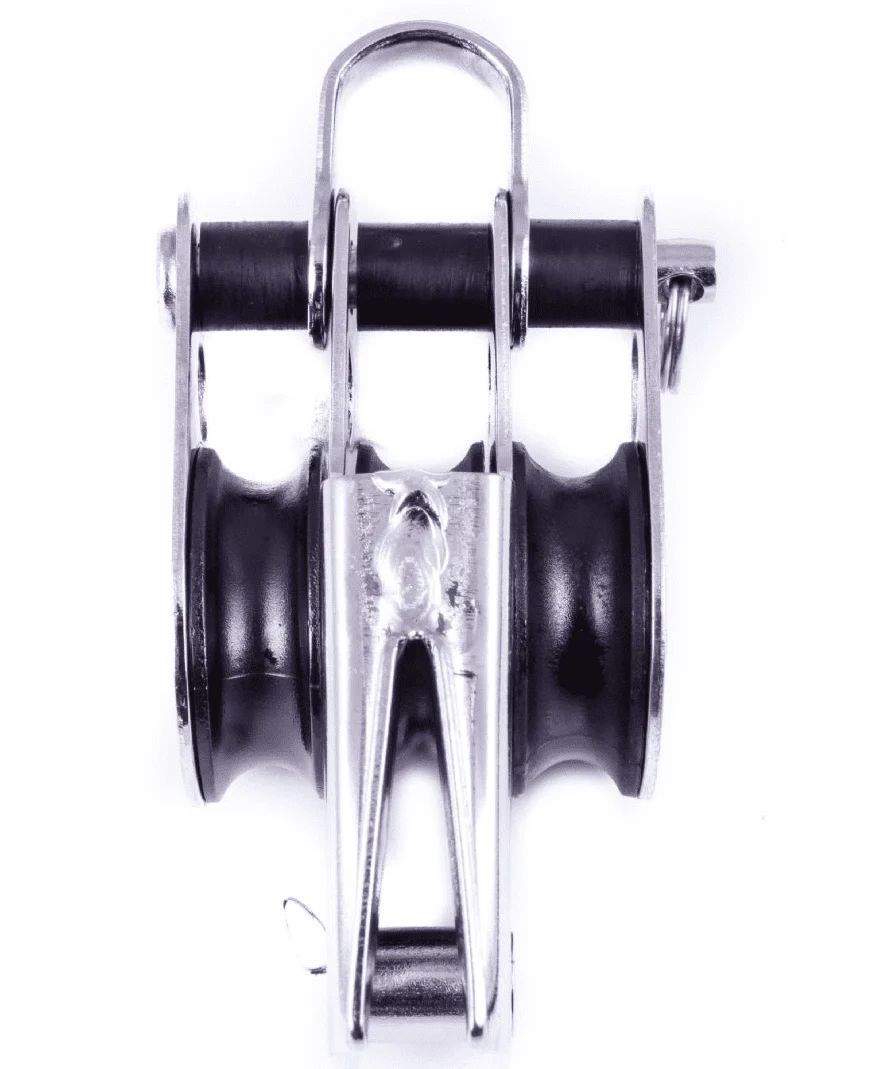

SeaSure 00.35 25 mm Plain Bearing Treble Mini Block with V-Jammer and Becket
SeaSure 00.35 is a 25 mm treble block with integrated V-jammer and becket from the SeaSure Mini OBS range. It is manufactured with marine-grade stainless steel side plates and rivets and uses hard-wearing Arnite plastic sheaves.
The block is suitable for ropes up to 8 mm in diameter and uses a simple plain bearing. Its three-sheave configuration has a maximum breaking strength (MBS) of 1250 kg and a safe working load (SWL) of 625 kg.
The SeaSure 00.35 can be used to create a 6:1 purchase system, helping reduce the load on the rope when lifting heavier objects. The integrated V-jammer allows the rope to be cleated directly at the block at any point when lifting or tensioning.
The integrated becket provides an additional rope attachment point within the purchase system.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.35
- Product type: Treble Mini block with V-jammer and becket
- Series: Mini OBS
- Block type: Fixed
- Sheave size: 25 mm
- Number of sheaves: 3
- Sheave material: Arnite plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Bearing type: Simple / plain bearing
- Maximum rope diameter: 8 mm
- Becket: Yes
- V-jammer / clamp: Yes
- MBS / breaking load: 1250 kg
- SWL: 625 kg
- Swivel: No
- Ratchet: No
- Colour: Stainless steel
- Suitable for 6:1 purchase systems
Functional Features
- Can be used to create a 6:1 purchase system
- V-jammer allows the rope to be cleated at the block
- Suitable for lifting and tensioning applications
- Becket provides an additional rope attachment point
Technical Specifications
Parameter Specification Manufacturer Article 00.35 Series Mini OBS Block Type Fixed Size 25 mm Number of Sheaves 3 Maximum Rope Diameter 8 mm Bearing Simple / plain bearing Becket Yes V-Jammer / Clamp Yes MBS / Breaking Load 1250 kg SWL 625 kg Swivel No Ratchet No Colour Stainless steel -
