SeaSure 00.32 is a 25 mm treble Mini block with becket from SeaSure’s plain bearing range, manufactured with marine-grade stainless steel side plates and rivets and hard-wearing Arnite plastic sheaves. It accepts ropes up to 8 mm and has a breaking load of 1250 kg. The three-sheave configuration with becket can be used to create a 6:1 purchase system, helping reduce rope load when lifting heavier objects.
- Description
- Ask a Question
-

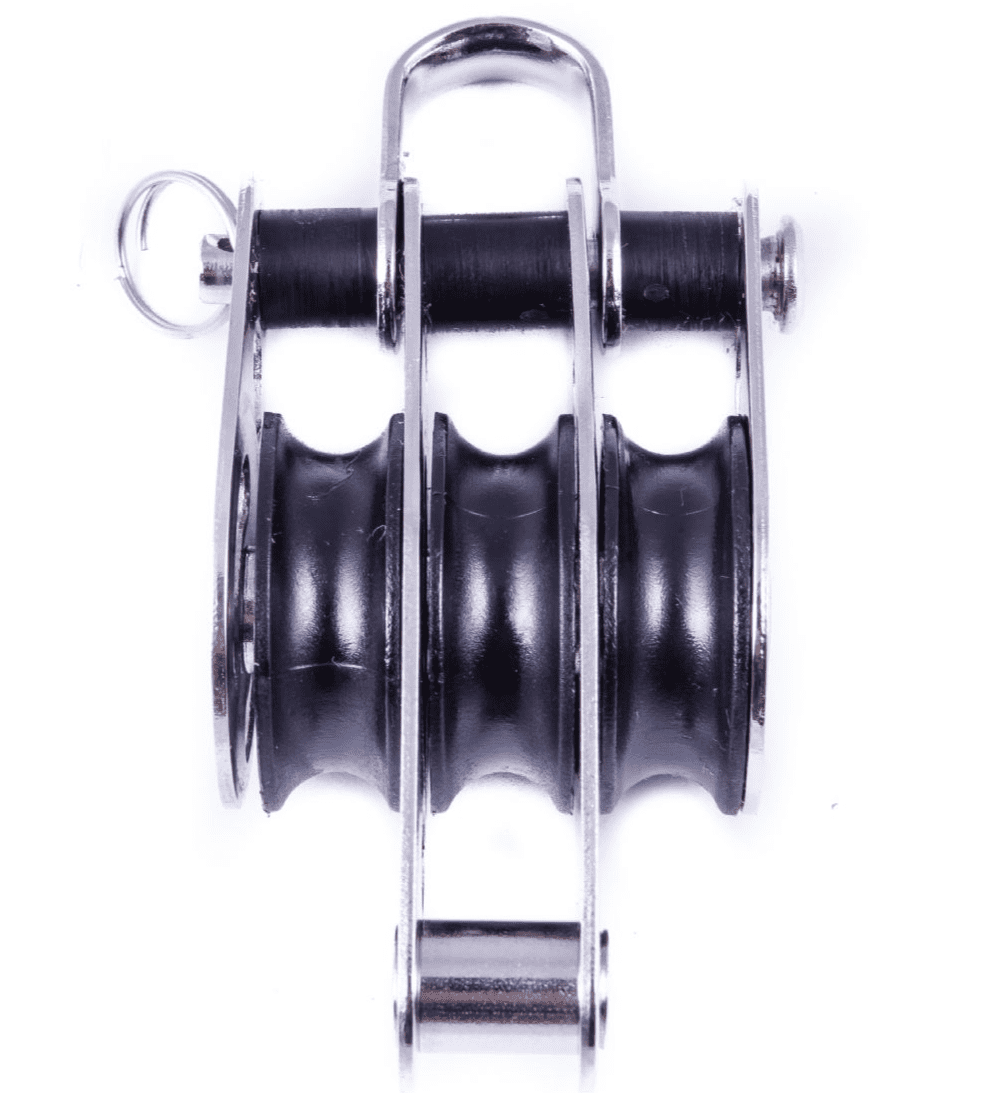

SeaSure 00.32 25 mm Plain Bearing Treble Mini Block with Becket
SeaSure 00.32 is a 25 mm treble block with becket from the SeaSure Mini plain bearing range. It is manufactured with marine-grade stainless steel side plates and rivets and uses hard-wearing Arnite plastic sheaves.
The block is suitable for ropes up to 8 mm in diameter and has a breaking load of 1250 kg. Its three-sheave configuration and integrated becket allow the block to form part of multi-part purchase systems.
The SeaSure 00.32 can be used to create a 6:1 purchase system, helping reduce the load on the rope when lifting heavier objects.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.32
- Product type: Treble Mini block with becket
- Series: Mini
- Sheave size: 25 mm
- Number of sheaves: 3
- Sheave material: Arnite plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Bearing type: Plain bearing
- Becket: Yes
- Maximum rope diameter: 8 mm
- Breaking load: 1250 kg
- Suitable for 6:1 purchase systems
Typical Applications
- 6:1 purchase systems
- Lifting systems
- Garage door mechanisms
- Storage solutions
Technical Specifications
Parameter Specification Manufacturer Article 00.32 Series Mini Size 25 mm Number of Sheaves 3 Maximum Rope Diameter 8 mm Sheave Material Arnite plastic Side Plate Material Marine-grade stainless steel Bearing Type Plain bearing Becket Yes Breaking Load 1250 kg Purchase System 6:1 -
