SeaSure 00.17 is a 25 mm deck lead Mini block from SeaSure’s plain bearing range, constructed with marine-grade stainless steel side plates and rivets and a hard-wearing Arnite plastic sheave. It accepts ropes up to 8 mm in diameter, uses 5 mm fixing holes and has a breaking load of 500 kg. The fixed deck-lead configuration is suitable for compact pulley systems, including lifting systems, garage door mechanisms and storage solutions.
- Description
- Ask a Question
-

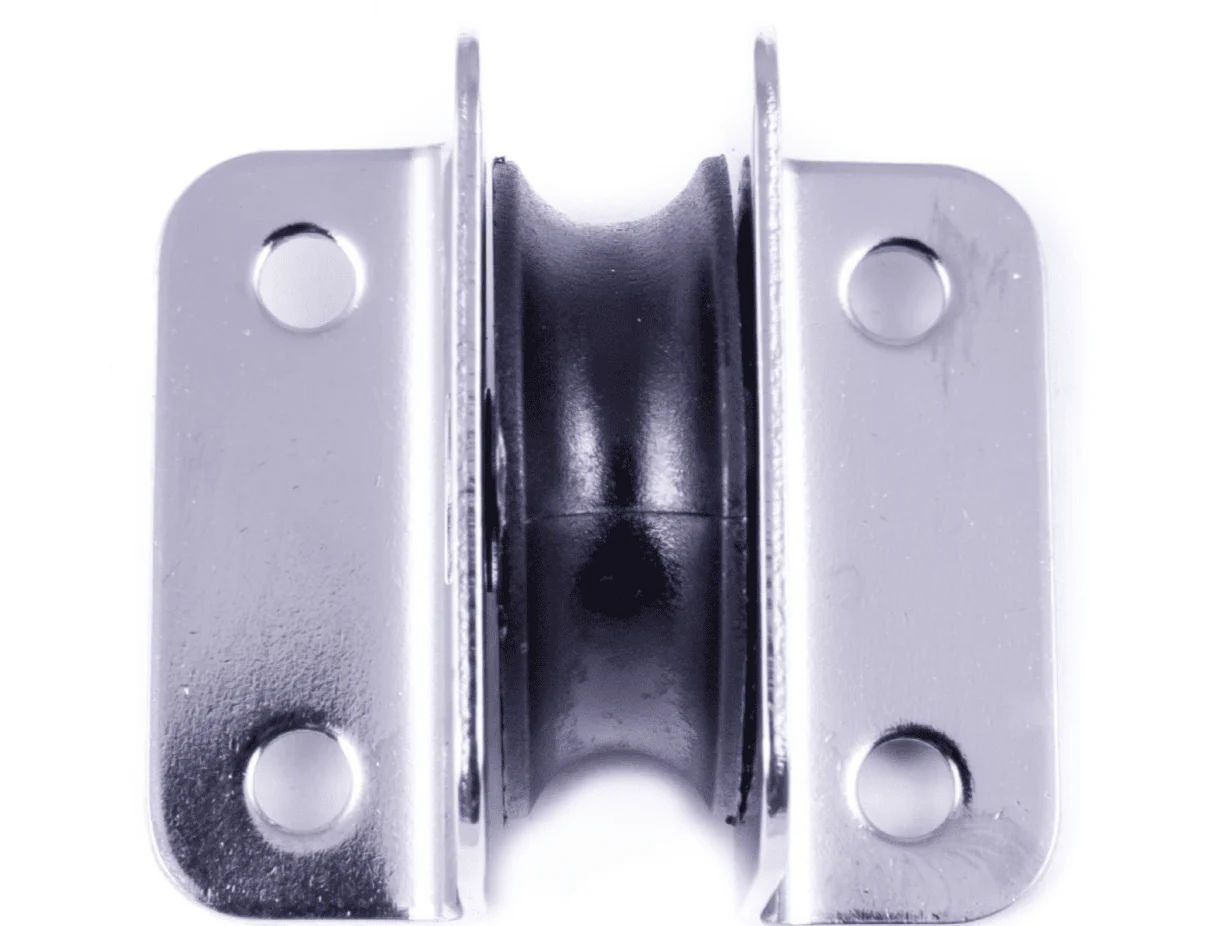

SeaSure 00.17 25 mm Plain Bearing Deck Lead Mini Block
SeaSure 00.17 is a 25 mm deck lead block from the SeaSure Mini plain bearing range. It is manufactured with marine-grade stainless steel side plates and rivets and uses a hard-wearing Arnite plastic sheave.
The block is suitable for ropes up to 8 mm in diameter and incorporates 5 mm fixing holes for direct mounting. Its compact deck-lead configuration provides a fixed line-routing point for pulley systems.
The SeaSure 00.17 has a breaking load of 500 kg. SeaSure identifies the 25 mm plain bearing range for applications including lifting systems, garage door mechanisms and storage solutions.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.17
- Product type: Deck lead Mini block
- Series: Mini
- Sheave size: 25 mm
- Sheave material: Arnite plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Bearing type: Plain bearing
- Maximum rope diameter: 8 mm
- Fixing hole diameter: 5 mm
- Breaking load: 500 kg
Typical Applications
- Lifting pulley systems
- Garage door mechanisms
- Storage solutions
Technical Specifications
Parameter Specification Manufacturer Article 00.17 Series Mini Size 25 mm Maximum Rope Diameter 8 mm Fixing Hole Diameter 5 mm Sheave Material Arnite plastic Side Plate Material Marine-grade stainless steel Bearing Type Plain bearing Breaking Load 500 kg -
