ID
1304650
$ 77.95
1-2 weeks delivery time
-
+
The Wichard 6646 Diamond Pad Eye is a robust 98 mm round stainless steel fitting for M8 screws, offering maximum mechanical strength and corrosion resistance, with working loads up to 4200 kg and breaking loads up to 11200 kg.
- Description
- Ask a Question
-

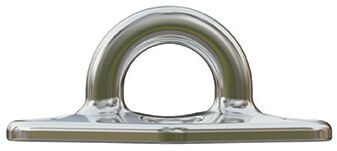

Wichard 6646 - Diamond Pad Eye Stainless Steel Round 98 mm / M8
This robust pad eye offers maximum mechanical strength while resisting corrosion, perfect for M8 screws and demanding fastening tasks.
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For ropes and webbings
- For M8 screw
- Working load (W.L 1, 90°): 4200 Kg
- Working load (W.L 2, 45°): 4200 Kg
- Working load (W.L 3, 0°): 4100 Kg
- Breaking load (B.L 1, 90°): 11200 Kg
- Breaking load (B.L 2, 45°): 11200 Kg
- Breaking load (B.L 3, 0°): 11000 Kg
- Applications: Mast foot blocks, Reefing blocks, Various fastenings
- Materials: Duplex stainless steel grade
- Weight: 250 g

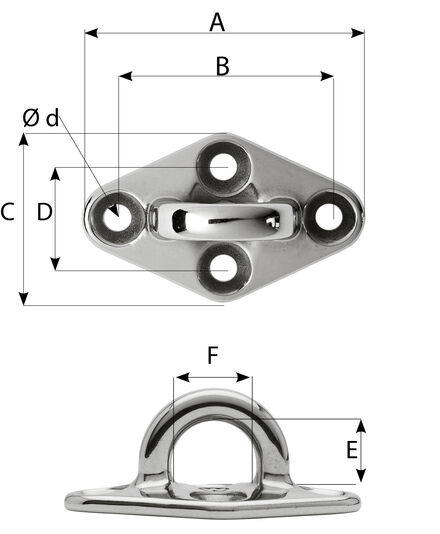

- Dimensions: A 98 mm, B 73 mm, C 59 mm, D 35 mm, E 22 mm, F 27 mm
- Item number: WR6646
-
