The Wichard 6654 Diamond Pad Eye is a square 60 mm stainless steel pad eye suitable for M5 screws, combining durability with corrosion resistance, supporting working loads up to 1200 kg and breaking loads up to 3200 kg.
- Description
- Ask a Question
-

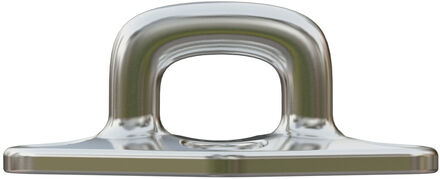

Wichard 6654 - Diamond Pad Eye Stainless Steel Square 60 mm / M5
This square pad eye combines durability and corrosion resistance, suitable for M5 screws and securing ropes or webbings.
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For ropes and webbings
- For M5 screw
- Working load (W.L 1, 90°): 1200 Kg
- Working load (W.L 2, 45°): 1100 Kg
- Working load (W.L 3, 0°): 1100 Kg
- Breaking load (B.L 1, 90°): 3200 Kg
- Breaking load (B.L 2, 45°): 3000 Kg
- Breaking load (B.L 3, 0°): 3000 Kg
- Applications: Mast foot blocks, Reefing blocks, Various fastenings
- Materials: Duplex stainless steel grade
- Weight: 59 g

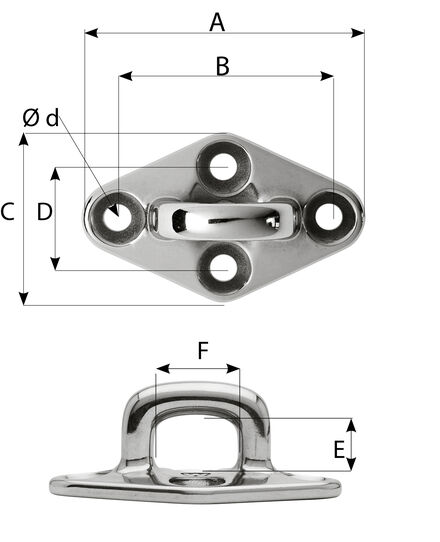

- Dimensions: A 60 mm, B 46 mm, C 38 mm, D 24 mm, E 12 mm, F 19 mm
- Item number: WR6654
-
