The Wichard 6655 Diamond Pad Eye is a square 79 mm stainless steel fitting for M6 screws, designed for higher load capacities and corrosion resistance, with working loads up to 2900 kg and breaking loads up to 7300 kg.
- Description
- Ask a Question
-

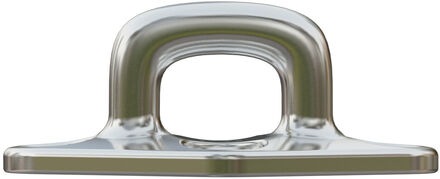

Wichard 6655 - Diamond Pad Eye Stainless Steel Square 79 mm / M6
This square pad eye offers increased load capacity while maintaining corrosion resistance, ideal for M6 screws and versatile marine applications.
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For ropes and webbings
- For M6 screw
- Working load (W.L 1, 90°): 2900 Kg
- Working load (W.L 2, 45°): 2600 Kg
- Working load (W.L 3, 0°): 2400 Kg
- Breaking load (B.L 1, 90°): 7300 Kg
- Breaking load (B.L 2, 45°): 6900 Kg
- Breaking load (B.L 3, 0°): 6300 Kg
- Applications: Mast foot blocks, Reefing blocks, Various fastenings
- Materials: Duplex stainless steel grade
- Weight: 145 g

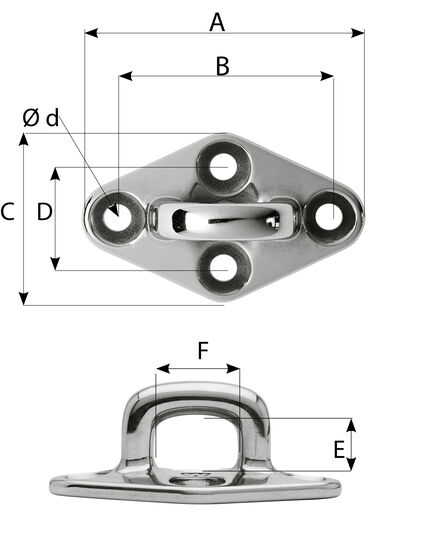

- Dimensions: A 79 mm, B 60 mm, C 50 mm, D 32 mm, E 15.5 mm, F 22 mm
- Item number: WR6655
-
