The Wichard 6644 Diamond Pad Eye is a compact round stainless steel fitting designed for securing ropes and webbings with M5 screws, offering high corrosion resistance and mechanical strength, with working loads up to 1200 kg and breaking loads up to 3200 kg.
- Description
- Ask a Question
-

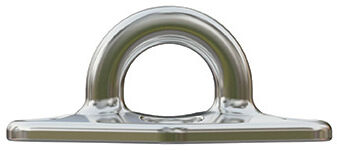

Wichard 6644 - Diamond Pad Eye Stainless Steel Round 60 mm / M5
This compact stainless steel pad eye is designed for both strength and corrosion resistance, making it ideal for securing ropes and webbings with M5 screws.
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For ropes and webbings
- For M5 screw
- Working load (W.L 1, 90°): 1200 Kg
- Working load (W.L 2, 45°): 1100 Kg
- Working load (W.L 3, 0°): 1100 Kg
- Breaking load (B.L 1, 90°): 3200 Kg
- Breaking load (B.L 2, 45°): 3000 Kg
- Breaking load (B.L 3, 0°): 3000 Kg
- Applications: Mast foot blocks, Reefing blocks, Various fastenings
- Materials: Duplex stainless steel grade
- Weight: 59 g

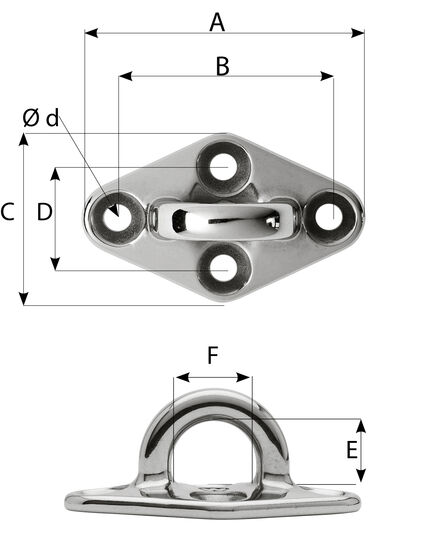

- Dimensions: A 60 mm, B 46 mm, C 38 mm, D 24 mm, E 14.5 mm, F 19 mm
- Item number: WR6644
-
