ID
1304649
$ 56.87
1-2 weeks delivery time
-
+
The Wichard 6645 Diamond Pad Eye is a larger round stainless steel pad eye suitable for M6 screws, providing enhanced load capacity and corrosion resistance, with working loads up to 2900 kg and breaking loads up to 7800 kg.
- Description
- Ask a Question
-

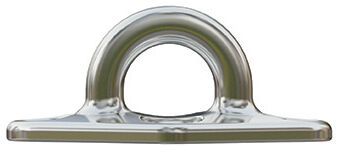

Wichard 6645 - Diamond Pad Eye Stainless Steel Round 79 mm / M6
This larger round pad eye provides enhanced load capacity while maintaining high resistance to corrosion, suitable for M6 screws and versatile applications.
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For ropes and webbings
- For M6 screw
- Working load (W.L 1, 90°): 2900 Kg
- Working load (W.L 2, 45°): 2600 Kg
- Working load (W.L 3, 0°): 2400 Kg
- Breaking load (B.L 1, 90°): 7800 Kg
- Breaking load (B.L 2, 45°): 6900 Kg
- Breaking load (B.L 3, 0°): 6300 Kg
- Applications: Mast foot blocks, Reefing blocks, Various fastenings
- Materials: Duplex stainless steel grade
- Weight: 143 g

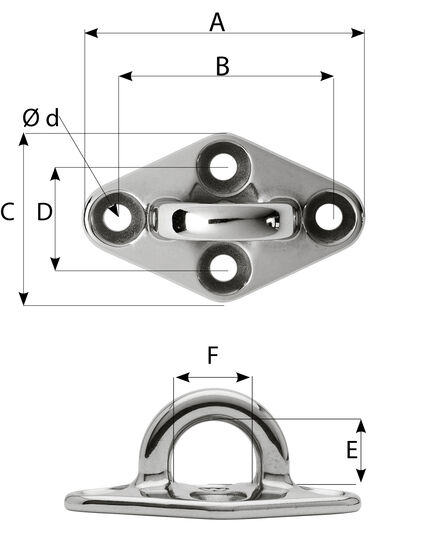

- Dimensions: A 79 mm, B 60 mm, C 50 mm, D 32 mm, E 18.5 mm, F 22 mm
- Item number: WR6645
-
