The Wichard 6656 Diamond Pad Eye is a heavy-duty square 98 mm stainless steel fitting for M8 screws, combining high mechanical strength with corrosion resistance, supporting working loads up to 4300 kg and breaking loads up to 11600 kg.
- Description
- Ask a Question
-

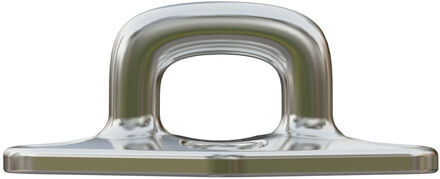

Wichard 6656 - Diamond Pad Eye Stainless Steel Square 98 mm / M8
This high-performance stainless steel pad eye combines mechanical strength with superior resistance to corrosion, making it ideal for rope and webbing attachments. Its carefully optimized dimensions support heavy-duty applications with M8 screws.
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions for ropes and webbings
- For M8 screw
- Working loads: W.L 1 (90°) : 4300 Kg, W.L 2 (45°) : 4300 Kg, W.L 3 (0°) : 4100 Kg
- Breaking loads: B.L 1 (90°) : 11600 Kg, B.L 2 (45°) : 11600 Kg, B.L 3 (0°) : 11000 Kg
- Applications: Mast foot blocks, Reefing blocks, Various fastenings
- Materials: Duplex stainless steel grade
- Weight: 255 g

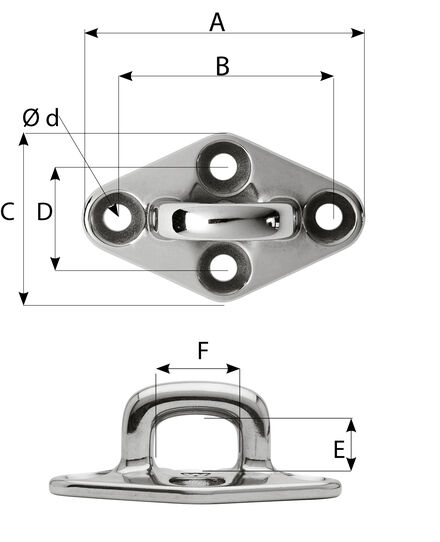

- Dimensions: A 98 mm, B 73 mm, C 59 mm, D 35 mm, E 19.5 mm, F 27 mm
- Item number: WR6656
-
