ID
1383872
$ 2.79
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
Twisted Shackles A4 are manufactured from A4 (AISI 316) stainless steel and are designed for applications where a 90° twisted connection provides improved alignment between fittings, chains, ropes, or hardware. Their corrosion-resistant construction makes them suitable for marine environments, with breaking loads ranging from 700 kg to 6,600 kg. Available in diameters from 4 mm to 12 mm.
- Description
- Ask a Question
-

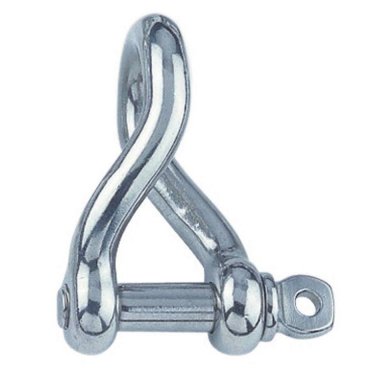

Twisted Shackles A4 Stainless Steel
Twisted Shackles A4 are manufactured from marine-grade A4 (AISI 316) stainless steel and are designed to provide a secure connection where a twisted orientation improves alignment between connected components. Their 90° twisted body reduces unnecessary twisting of ropes, chains, and fittings while maintaining a strong and reliable connection.
Highly resistant to corrosion, these shackles are ideal for marine, sailing, industrial, and outdoor applications. Multiple sizes are available to accommodate different load requirements.
Features
- Manufactured from A4 (AISI 316) stainless steel
- Twisted body for improved alignment of connected hardware
- Excellent corrosion resistance for marine environments
- Suitable for rigging, mooring, lifting and general fastening applications
- Available in multiple diameters and breaking loads
Available Variations
SKU Diameter Dimension A Dimension L Breaking Load MT044 Ø 4 mm 8 mm 22 mm 700 kg MT054 / 007838 Ø 5 mm 10 mm 27 mm 1,000 kg MT064 / 007839 Ø 6 mm 12 mm 30 mm 1,500 kg MT084 / 007840 Ø 8 mm 16 mm 42 mm 3,000 kg MT104 / 007841 Ø 10 mm 20 mm 55 mm 4,300 kg 007842 Ø 12 mm 24 mm 65 mm 6,600 kg
Technical Specifications
Material A4 (AISI 316) stainless steel Product Type Twisted Shackle Diameter Range 4–12 mm Breaking Load 700–6,600 kg Applications Marine rigging, mooring, sailing hardware, lifting and general fastening
Applications
- Marine rigging systems
- Anchor and mooring equipment
- Sailing hardware
- Industrial fastening
- Outdoor and general-purpose connections
-
