ID
1383867
$ 71.62
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
- 12
Pewag Omega Force 7 Anchor Shackles are manufactured from hot-dip galvanized steel and are specifically designed to provide a secure connection between the anchor and anchor chain without creating galvanic corrosion. Their smooth Omega profile allows easy passage through bow rollers and windlasses while maintaining optimal mechanical strength. Available for 6 mm, 8 mm, 10 mm, and 12 mm anchor chains with breaking loads from 4,033 kg to 16,130 kg.
- Description
- Ask a Question
-

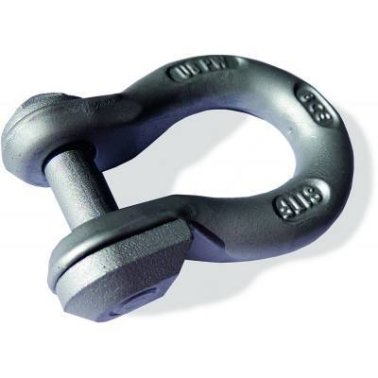

Pewag Omega Force 7 Anchor Shackles
Pewag Omega Force 7 Anchor Shackles are specially designed to create a strong and secure connection between an anchor and anchor chain while maintaining maximum mechanical strength. Their unique Omega-shaped profile passes smoothly through bow rollers and windlass gypsies, making them ideal for modern anchoring systems.
Manufactured from hot-dip galvanized steel, these shackles provide outstanding corrosion resistance in harsh marine environments. The tamper-resistant pin system is protected against corrosion and ensures a secure installation during long-term use.
Features
- Original Pewag Force 7 Omega anchor shackle
- Designed specifically for anchor-to-chain connections
- Hot-dip galvanized steel construction
- Smooth Omega profile for easy passage through bow rollers
- Maintains optimal mechanical strength
- Tamper-resistant corrosion-protected pin system
- Suitable for marine anchoring systems
Available Variations
Pewag Article Chain Size Inner Width Breaking Load AC608006 6 mm 28 mm 4,033 kg AC608008 8 mm 28 mm 7,170 kg AC608010 10 mm 35 mm 11,200 kg AC608012 12 mm 39 mm 16,130 kg
Technical Specifications
Brand Pewag Series Force 7 Omega Product Type Anchor Shackle Material Hot-dip galvanized steel Available Chain Sizes 6 mm, 8 mm, 10 mm, 12 mm Breaking Load 4,033–16,130 kg Applications Anchor-to-chain connection
Applications
- Anchor and chain connection
- Windlass systems
- Bow roller installations
- Marine anchoring systems
- Sailing yachts
- Motorboats and workboats
-
