Wichard Forged Self-Locking D Shackles are manufactured from forged marine-grade 316L stainless steel and feature Wichard's integrated self-locking pin system that prevents accidental loosening under vibration. Designed for professional sailing, rigging, and marine applications, these forged shackles combine high mechanical strength with outstanding corrosion resistance and are available in diameters from 4 mm to 14 mm.
- Description
- Ask a Question
-

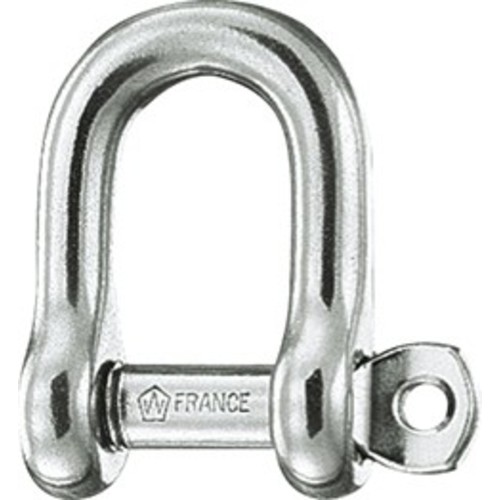

Wichard Forged Self-Locking D Shackles Stainless Steel 316L
Wichard Forged Self-Locking D Shackles are manufactured from forged marine-grade 316L stainless steel to provide maximum strength, reliability, and corrosion resistance in demanding marine environments. Their integrated self-locking pin system prevents accidental loosening caused by vibration while eliminating the need for additional seizing wire.
The forged D-shackle design offers a compact, high-strength connection ideal for rigging, sailing hardware, blocks, deck fittings, and general marine fastening. Manufactured by Wichard and supplied through Plastimo, these shackles are trusted by professional sailors worldwide.
Features
- Original Wichard forged shackle
- Distributed by Plastimo
- Forged marine-grade 316L stainless steel construction
- Integrated self-locking pin
- Excellent resistance to seawater corrosion
- Compact D-shackle profile for high-strength connections
- Suitable for professional marine and sailing applications
Available Variations
Plastimo SKU Wichard OEM Diameter Breaking Load SWL 100710 W 1201 Ø 4 mm 560 kg 112 kg 100712 W 1203 Ø 6 mm 1,280 kg 256 kg 100713 W 1204 Ø 8 mm 2,160 kg 432 kg 100714 W 1205 Ø 10 mm 3,440 kg 682 kg 100715 W 1206 Ø 12 mm 4,800 kg 960 kg 415058 W 1207 Ø 14 mm 6,400 kg 1,280 kg
Technical Specifications
Brand Wichard Distributor Plastimo Material Forged 316L stainless steel Product Type Self-Locking Forged D Shackle Locking System Integrated self-locking pin Diameter Range 4–14 mm Working Load 112–1,280 kg (SWL) Breaking Load 560–6,400 kg Applications Rigging, sailing hardware, deck equipment, blocks, marine fastening and industrial use
Applications
- Standing and running rigging
- Blocks and pulleys
- Deck hardware installations
- Marine and offshore equipment
- General high-strength fastening applications
-
