$ 192.17
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
- 12
Item:
- 5 pcs
- 10 pcs
Wichard Captive Pin D Shackles are manufactured from forged marine-grade 316L stainless steel and feature a captive pin design that prevents pin loss during handling and installation. Designed for professional sailing and marine applications, these compact D shackles provide secure fastening, high corrosion resistance, and excellent mechanical strength. Available in diameters from 5 mm to 12 mm.
- Description
- Ask a Question
-

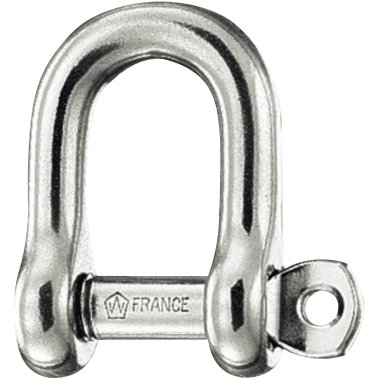

Wichard Captive Pin D Shackles Stainless Steel 316L
Wichard Captive Pin D Shackles are manufactured from premium marine-grade 316L stainless steel and are designed for professional sailing, rigging, and marine hardware installations. The captive pin remains permanently attached to the shackle body, reducing the risk of losing the pin during maintenance or installation while providing a secure and reliable connection.
The compact D-shaped body is ideal where limited movement is required and maximum strength is desired. Manufactured by Wichard and supplied through Plastimo, these shackles offer excellent resistance to seawater corrosion and are suitable for demanding marine environments.
Features
- Original Wichard product
- Distributed by Plastimo
- Marine-grade 316L stainless steel construction
- Captive pin prevents accidental loss during installation
- Compact D-shackle profile
- Excellent corrosion resistance
- Designed for professional marine and sailing applications
Available Variations
Plastimo SKU Wichard OEM Diameter Breaking Load Safe Working Load 401501 W 1402 Ø 5 mm 1,200 kg 240 kg 401502 W 1403 Ø 6 mm 1,760 kg 352 kg 401503 W 1404 Ø 8 mm 2,880 kg 576 kg 401504 W 1405 Ø 10 mm 4,160 kg 832 kg 401505 W 1406 Ø 12 mm 5,600 kg 1,120 kg
Technical Specifications
Brand Wichard Distributor Plastimo Material 316L stainless steel Product Type Captive Pin D Shackle Pin Type Captive pin Diameter Range 5–12 mm Safe Working Load (SWL) 240–1,120 kg Breaking Load 1,200–5,600 kg Applications Marine rigging, sailing hardware, deck fittings, blocks and general fastening
Applications
- Standing and running rigging
- Blocks and pulleys
- Deck hardware installations
- Marine and offshore equipment
- General-purpose marine fastening
-
