Wichard Captive Pin Bow Shackles are manufactured from forged marine-grade 316L stainless steel and designed for professional sailing, rigging, lifting, and marine fastening applications. The captive pin construction prevents pin loss during operation, while the bow-shaped body allows multi-directional loading and improved articulation. Available in diameters from Ø4 mm to Ø8 mm with breaking loads up to 2,880 kg.
- Description
- Ask a Question
-

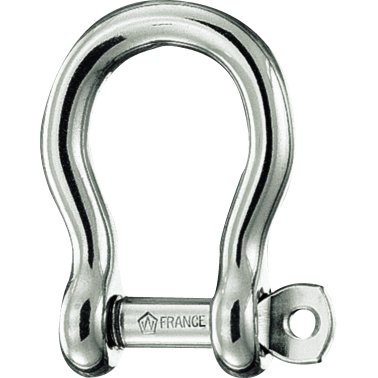

Wichard Captive Pin Bow Shackles Stainless Steel 316L
Wichard Captive Pin Bow Shackles are precision-forged from premium 316L stainless steel to provide exceptional strength, corrosion resistance, and long service life in demanding marine environments. Their bow-shaped design accommodates multiple attachment points and allows greater freedom of movement compared to straight shackles.
Supplied through Plastimo, these original Wichard shackles feature a captive pin that remains permanently attached to the shackle body, reducing the risk of accidental pin loss during installation or maintenance. They are suitable for sailing yachts, rigging systems, deck hardware, mooring equipment, and general marine applications.
Features
- Original Wichard products
- Official Plastimo distributor references included
- Original Wichard OEM part numbers included
- Forged marine-grade 316L stainless steel
- Captive pin construction
- Wide bow profile for multi-directional loading
- Excellent corrosion resistance
- Designed for professional marine and offshore applications
Available Variations
Plastimo SKU Wichard OEM Diameter Length Width Breaking Load SWL 400650 W 1441 Ø 4 mm 18 mm 8 mm 800 kg 160 kg 400649 W 1442 Ø 5 mm 23 mm 10 mm 1,200 kg 240 kg 400652 W 1443 Ø 6 mm 27 mm 12 mm 1,760 kg 352 kg 400653 W 1444 Ø 8 mm 37 mm 16 mm 2,880 kg 576 kg
Technical Specifications
Brand Wichard Distributor Plastimo Material Forged stainless steel 316L Type Captive Pin Bow Shackle Diameter Range 4–8 mm Safe Working Load (SWL) 160–576 kg Breaking Load 800–2,880 kg Pin Type Captive pin Applications Sailing rigging, deck hardware, mooring systems, lifting equipment and professional marine installations
Applications
- Sailing and yacht rigging
- Standing and running rigging
- Deck hardware
- Mooring systems
- Marine lifting applications
- Offshore installations
- Professional marine equipment
-
