ID
1355479
$ 25.01
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
- 7
- 8
- 10
The STA-LOK 044 Swage T-Terminals are stainless steel wire rope terminals designed for use with rotary and fixed die swaging machines. Manufactured from high specification 316 stainless steel, these terminals are suitable for 1×19, 7 strand, and compacted strand wire rope (IWRC). The series is available in wire sizes from 3 mm to 10 mm and requires a minimum hole depth of 10× wire diameter.
- Description
- Ask a Question
-

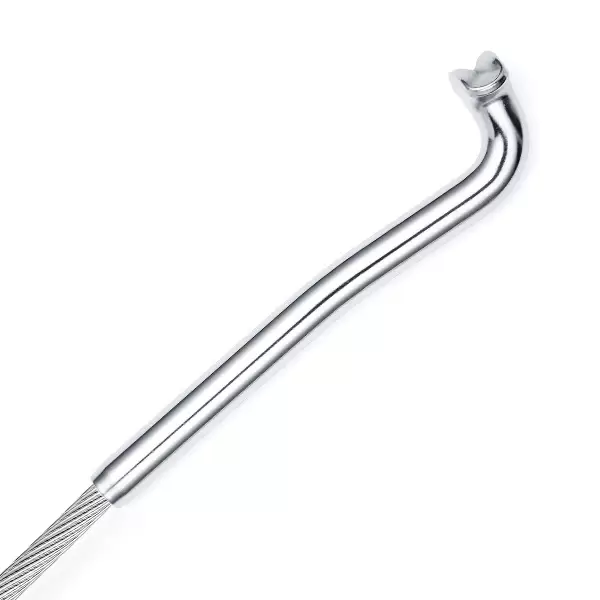

STA-LOK 044 Swage T-Terminals – 316 Stainless Steel T-Terminals for Wire Rope
The STA-LOK 044 Swage T-Terminals are precision wire rope terminals designed for secure swaged terminations in marine, architectural, and industrial applications. Manufactured from high specification 316 stainless steel, they provide high corrosion resistance and reliable long-term performance in demanding environments.
These terminals are suitable for use with rotary and fixed die swaging machines and can be used with 1×19, 7 strand, and compacted strand wire rope (IWRC). They are suitable for both metric and inch wire ropes.
For correct installation, a minimum hole depth of 10× wire diameter is required.
Key Features
- Manufactured from 316 stainless steel
- Suitable for rotary and fixed die swaging machines
- Designed for wire rope terminations
- Compatible with 1×19, 7 strand, and compacted strand wire rope (IWRC)
- Suitable for metric and inch wire ropes
- Minimum hole depth: 10× wire diameter
Available Variants
Item Number Wire Size (Metric) Wire Size (Imperial) A (mm) B (mm) C (mm) D (mm) Weight (kg) ST044-03 3 mm - 6.3 86.0 6.3 15.0 0.025 ST044-04 4 mm 5/32" 7.5 101.0 7.5 16.5 0.040 ST044-05 5 mm 3/16" 9.0 112.0 9.0 18.5 0.060 ST044-06 6 mm - 12.5 136.0 12.6 27.7 0.140 ST044-07 7 mm 9/32" 14.2 148.0 14.0 30.0 0.180 ST044-08 8 mm 5/16" 16.0 184.0 16.0 34.4 0.300 ST044-10 10 mm - 17.8 214.0 17.5 36.4 0.420
Technical Information
- Material: 316 stainless steel
- Terminal type: Swage T-terminal
- Installation method: Rotary or fixed die swaging machine
- Wire compatibility: 1×19, 7 strand, and compacted strand wire rope (IWRC)
- Minimum hole depth: 10× wire diameter
-
