ID
1355455
$ 68.17
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 7
- 8
- 10
- 12
- 14
- 16
- 19
Item:
- 1 pcs
- 2 pcs
- 5 pcs
The STA-LOK Dyform & Compacted Wedges are replacement wedges designed for STA-LOK Self-Fit Terminals used with Dyform and compacted strand wire ropes. These wedges must be replaced whenever a terminal is reused. Manufactured from 316 stainless steel and laser marked for identification, they are available in multiple wire sizes and constructions including 1×7, 1×19, 1×25, 1×31, and 1×36. These wedges are intended for Dyform and compacted strand wire ropes only and are not suitable for standard 1×19, 7×7, or 7×19 constructions unless specifically matched to the correct wedge type.
- Description
- Ask a Question
-

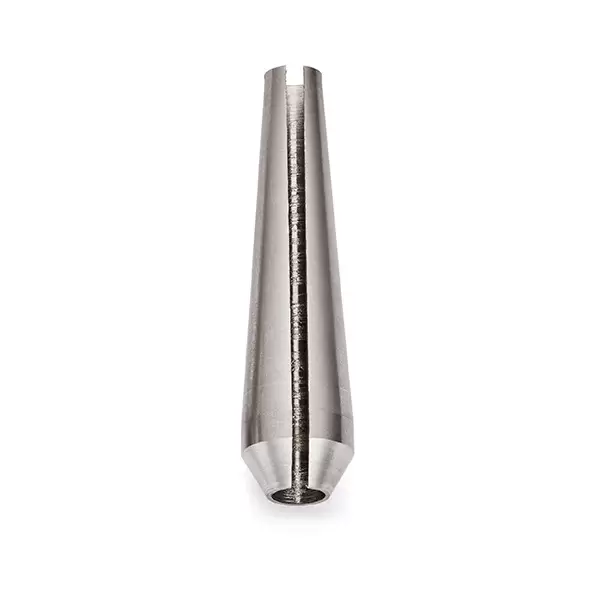

STA-LOK Dyform & Compacted Wedges – 316 Stainless Steel Replacement Wedges for Self-Fit Terminals
The STA-LOK Dyform & Compacted Wedges are replacement components designed for STA-LOK Self-Fit Terminals used with Dyform and compacted strand wire ropes. These wedges must be replaced whenever a terminal is reused to ensure correct re-termination and secure fitting.
Compacted strand and Dyform wire ropes provide higher breaking loads and reduced stretch compared to conventional 1×19 wire. These wedges are designed to terminate a range of constructions including 1×7, 1×19, 1×25, 1×31, and 1×36, depending on the specific wedge selected.
Manufactured from 316 stainless steel, each wedge is laser marked for easy identification. Wedges are supplied in packs of 1, 2, or 5 depending on wire size and construction.
Key Features
- Replacement wedges for STA-LOK Self-Fit Terminals
- Designed for Dyform and compacted strand wire ropes
- Must be replaced when terminals are reused
- Manufactured from 316 stainless steel
- Laser marked for easy identification
- Available for 1×7, 1×19, 1×25, 1×31, and 1×36 constructions
Available Variants
Item Number Wire Size (Metric) Construction Compacted Dyform Pack Quantity Weight per Pack (kg) ST154-04 4 mm 1×7 Yes Yes 5 0.005 ST154-05 5 mm 1×19 Yes Yes 5 0.010 ST154-06 6 mm 1×19 No Yes 5 0.025 ST154-07 7 mm 1×19 No Yes 5 0.028 ST154-08 8 mm 1×19 Yes Yes 2 0.017 ST154-10 10 mm 1×19 Yes Yes 2 0.033 ST154-12 12 mm 1×19 No Yes 1 0.033 ST154-14 14 mm 1×25 Yes Yes 1 0.060 ST154-16 16 mm 1×25 No Yes 1 0.110 ST154-19 19 mm 1×31 No Yes 1 0.140
Technical Information
- Material: 316 stainless steel
- Application: Replacement wedge for STA-LOK Self-Fit Terminals
- Wire types: Dyform and compacted strand wire ropes
- Constructions available: 1×7, 1×19, 1×25, 1×31, 1×36
- Identification: Laser marked
-
