The STA-LOK 045 Swage Shrouds are stainless steel wire rope terminals designed for use with rotary and fixed die swaging machines. Manufactured from high specification 316 stainless steel, they provide reliable swaged termination for 1×19, 7 strand, and compacted strand wire rope (IWRC). These terminals are compatible with metric and inch wire ropes, require a minimum hole depth of 10× wire diameter, and are designed to fit N840 backing plates.
- Description
- Ask a Question
-

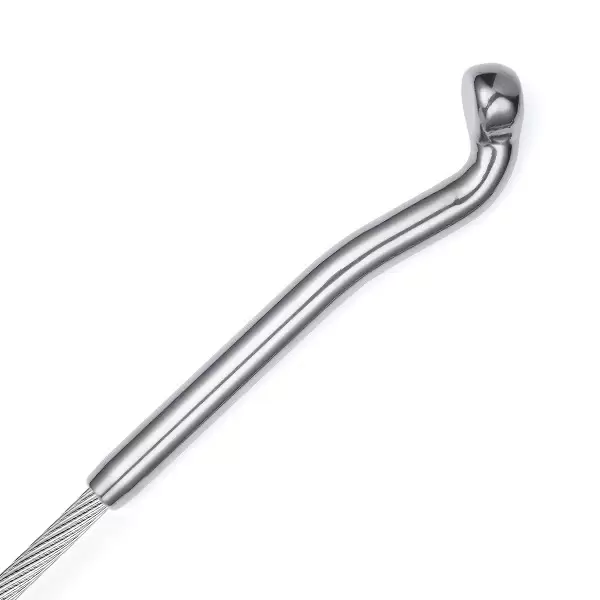

STA-LOK 045 Swage Shrouds – 316 Stainless Steel Swage Terminals for Wire Rope
The STA-LOK 045 Swage Shrouds are precision wire rope terminals designed for secure swaged terminations in marine rigging, architectural installations, and industrial applications. Manufactured from high specification 316 stainless steel, these fittings provide excellent corrosion resistance and long service life in demanding environments.
The terminals are suitable for use with rotary and fixed die swaging machines and can be used with 1×19, 7 strand, and compacted strand wire rope (IWRC). They are compatible with both metric and inch wire ropes.
For proper installation, a minimum hole depth of 10× wire diameter is required. The terminals are also designed to work with N840 backing plates.
Key Features
- Manufactured from 316 stainless steel
- Suitable for rotary and fixed die swaging machines
- Designed for wire rope termination
- Compatible with 1×19, 7 strand, and compacted strand wire rope (IWRC)
- Suitable for metric and inch wire ropes
- Minimum hole depth: 10× wire diameter
- Compatible with N840 backing plates
Available Variants
Item Number Wire Size (Metric) Wire Size (Imperial) A (mm) B (mm) C (mm) D (mm) Weight (kg) ST045-04 4 mm 5/32" 7.4 88.2 7.5 16.0 0.040 ST045-05 5 mm 3/16" 9.0 103.8 9.1 19.0 0.060 ST045-06 6 mm - 12.4 130.0 12.5 22.0 0.140 ST045-07 7 mm 9/32" 14.2 149.0 14.3 28.0 0.200 ST045-08 8 mm 5/16" 16.1 168.0 16.0 30.0 0.280 ST045-10 10 mm - 17.7 197.0 17.8 32.0 0.380 ST045-12 12 mm - 21.4 241.0 21.4 38.0 0.660
Technical Information
- Material: 316 stainless steel
- Terminal type: Swage shroud terminal
- Installation method: Rotary or fixed die swaging machine
- Wire compatibility: 1×19, 7 strand, and compacted strand wire rope (IWRC)
- Minimum hole depth: 10× wire diameter
- Compatible backing plates: N840
-
