ID
1355515
$ 60.04
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
Item:
- M8
- 5/16
The STA-LOK G28 Guard Rail Adjuster Fork & Swage is a stainless steel lifeline adjustment fitting designed for 4 mm and 5 mm wire rope systems. Manufactured from marine grade stainless steel, it reduces the weight and overall length compared with conventional turnbuckles while allowing single-end swivel adjustment. The adjuster provides ±16 mm (5/8") adjustment range and is available with 5/16" UNF or M8 thread.
- Description
- Ask a Question
-

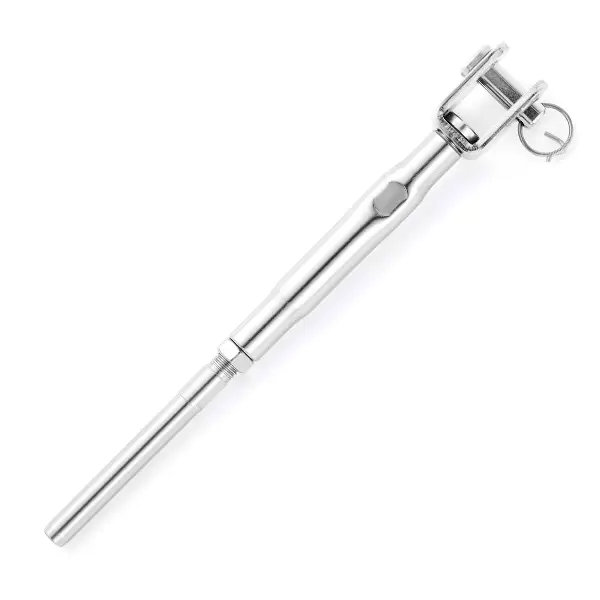

STA-LOK G28 Guard Rail Adjuster Fork & Swage – Stainless Steel Lifeline Adjuster
The STA-LOK G28 Guard Rail Adjuster Fork & Swage is a compact stainless steel fitting designed for guard rail and lifeline tension adjustment on sailing yachts and marine installations. Manufactured from marine grade stainless steel, it offers corrosion resistance and long service life in marine environments.
This adjuster integrates a fork fitting and swage terminal, reducing the overall length and weight compared with conventional turnbuckles. The design provides single-end swivel adjustment, allowing easy tensioning of guard rail systems.
The adjuster provides an adjustment range of ±16 mm (5/8") and is suitable for installations requiring a compact and efficient alternative to traditional lifeline turnbuckles.
Key Features
- Marine grade stainless steel construction
- Guard rail and lifeline adjuster with swage terminal
- Reduces weight and length compared with conventional turnbuckles
- Single-end swivel adjustment
- Adjustment range: ±16 mm (5/8")
- Suitable for marine lifeline systems
Available Variants
Item Number Wire Size Thread (UNF) Thread (Metric) A (mm) B (mm) D (mm) P (mm) Weight (kg) STG28-04-5/16 4 mm 5/16" - 7.4 15.0 11.1 7.7 0.110 STG28-04-M8 4 mm - M8 7.4 15.0 11.1 7.7 0.110 STG28-05-5/16 5 mm 5/16" - 9.0 15.0 11.1 7.7 0.120 STG28-05-M8 5 mm - M8 9.0 15.0 11.1 7.7 0.120
Technical Information
- Material: Marine grade stainless steel
- Product type: Guard rail adjuster fork & swage
- Application: Lifeline and guard rail tension adjustment
- Adjustment range: ±16 mm (5/8")
- Swivel function: Adjustment at one end only
-
