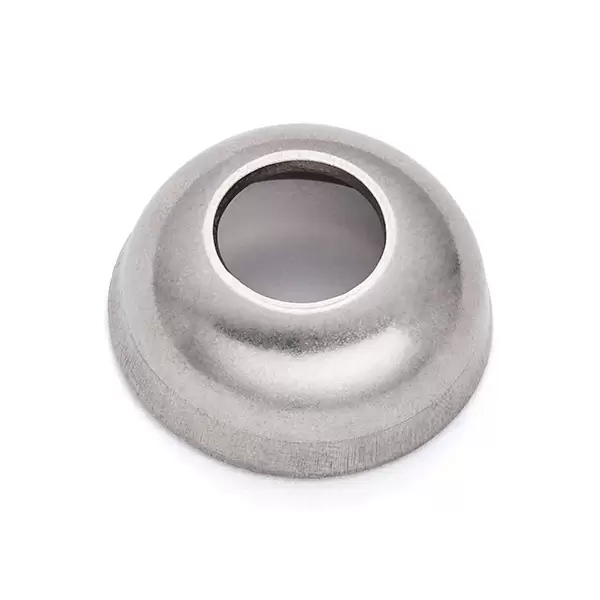

STA-LOK 042C Stemball Cups 316 Stainless Steel

ID 1355507

$ 20.94

1-2 weeks delivery time

Diameter, mm:

4
5
8-10
6-7

The STA-LOK 042C Stemball Cups are stainless steel fitting cups designed for use with STA-LOK Swage Stemball terminals in spreader brackets. Manufactured from high specification 316 stainless steel, these cups are used to adjust the stemball head size to suit mast and spreader bracket installations. Depending on the application, one or two cups may be required.

Description
Ask a Question

STA-LOK 042C Stemball Cups – 316 Stainless Steel Cups for Swage Stemball Fittings

The STA-LOK 042C Stemball Cups are stainless steel accessories designed for use with STA-LOK Swage Stemball fittings. These cups are used to fit stemball terminals into spreader brackets and help achieve the correct head size for mast and spreader bracket installations.

Manufactured from high specification 316 stainless steel, the cups provide corrosion resistance and durability for marine rigging applications. Depending on the installation, one or two stemball cups may be required.

Key Features

Manufactured from 316 stainless steel
Designed for use with STA-LOK Swage Stemball fittings
Used to fit stemball terminals into spreader brackets
Helps adjust head size for mast and spreader bracket applications
One or two cups may be required depending on installation

Available Variants

Item Number	Wire Size (Metric)	Wire Size (Imperial)	A (mm)	B (mm)	Weight (kg)
ST042C-4	4 mm	5/32"	9.0	26.0	0.016
ST042C-5	5 mm	3/16"	11.2	26.0	0.014
ST042C-6/7	6 mm & 7 mm	7/32", 1/4", 9/32"	16.0	26.0	0.016
ST042C-8/10	8 mm & 10 mm	5/16" & 3/8"	20.0	34.0	0.017

Technical Information

Material: 316 stainless steel
Accessory type: Stemball cup
Application: Swage stemball fitting installation in spreader brackets
Use: Head size adjustment for mast and spreader brackets
