ID
1384005
$ 28.75
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
Item:
- 2 pcs
The Plastimo Stainless Steel Safety D Shackles are engineered for secure marine fastening with an innovative double-thread captive pin system that significantly reduces the risk of pin loss during operation. Manufactured from corrosion-resistant stainless steel, these standard D shackles are available in Ø4 mm, Ø5 mm, Ø6 mm, Ø8 mm and Ø10 mm sizes. Depending on the selected model, they provide safe working loads up to 2,500 kg and break loads up to 5,700 kg, making them suitable for rigging, sailing, mooring and general deck hardware.
- Description
- Ask a Question
-

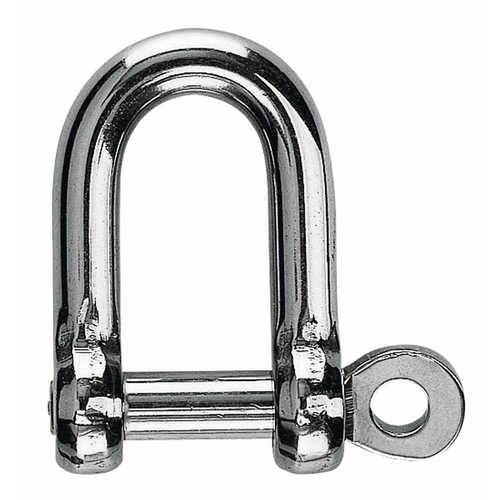

Plastimo Stainless Steel Safety D Shackles
The Plastimo Stainless Steel Safety D Shackles are designed for reliable fastening in marine and industrial applications. Manufactured from corrosion-resistant stainless steel, these shackles feature an innovative double-thread captive pin system that helps prevent accidental loss of the pin during installation or maintenance.
Unlike conventional shackles, the threaded pin first disengages from the locking thread before resting on a secondary thread. The pin can only be removed by completely unscrewing it, greatly reducing the possibility of accidental separation. This design makes the shackles particularly suitable for sailing, rigging and deck hardware where security is essential.
Features
- Original Plastimo marine hardware
- Standard D-shackle design
- Innovative double-thread captive pin system
- Reduced risk of losing the pin during operation
- Corrosion-resistant stainless steel construction
- Suitable for marine and outdoor environments
- Ideal for rigging, sailing and general fastening applications
Available Variations
Plastimo SKU Diameter Length Width Break Load Safe Working Load 16738 Ø4 mm 15 mm 8 mm 1050 kg 450 kg 16739 Ø5 mm — — — — 16740 Ø6 mm 19 mm 12 mm 1800 kg 1000 kg 16741 Ø8 mm — — — — 16742 Ø10 mm 33 mm 20 mm 5700 kg 2500 kg
Only manufacturer specifications supplied in the source data are included. Values not provided by Plastimo have intentionally been left blank.
Technical Specifications
Brand Plastimo Product Type Safety D Shackle Material Stainless Steel Design Standard D Shackle Pin System Double-thread captive pin Available Sizes Ø4 mm, Ø5 mm, Ø6 mm, Ø8 mm, Ø10 mm Applications Rigging, sailing, deck hardware, mooring, marine fastening
Applications
- Standing and running rigging
- Deck hardware installation
- Mooring systems
- Blocks and pulley connections
- Marine fastening
- General-purpose outdoor applications
-
