ID
1384011
$ 18.85
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
Item:
- 2 pcs
The Plastimo Long Stainless Steel Safety Shackles are designed for marine applications requiring extended reach and secure fastening. Manufactured from corrosion-resistant stainless steel, they feature an innovative double-thread captive pin system that greatly reduces the risk of accidental pin loss. Available in Ø4 mm, Ø5 mm, Ø6 mm and Ø8 mm sizes, these long D shackles provide safe working loads of up to 1,700 kg and break loads of up to 4,300 kg, making them ideal for sailing, rigging, deck hardware and mooring systems.
- Description
- Ask a Question
-

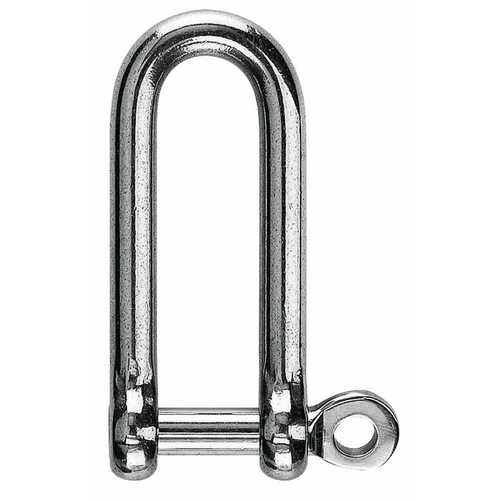

Plastimo Long Stainless Steel Safety Shackles
The Plastimo Long Stainless Steel Safety Shackles are engineered for reliable fastening in demanding marine environments. Manufactured from corrosion-resistant stainless steel, these long D shackles combine excellent mechanical strength with an innovative captive pin system that minimizes the risk of losing the pin during operation.
The unique double-thread design allows the pin to disengage from the locking thread before resting on a secondary thread when opened. The pin can only be completely removed by fully unscrewing it, significantly improving safety during installation and maintenance. The elongated body provides additional clearance for rigging, blocks, fittings and deck hardware where a standard shackle may not offer sufficient reach.
Features
- Original Plastimo marine hardware
- Extended long D-shackle design
- Double-thread captive pin system
- Greatly reduces the risk of accidental pin loss
- Corrosion-resistant stainless steel construction
- Suitable for professional marine environments
- Ideal for rigging, sailing and deck hardware installations
Available Variations
Plastimo SKU Diameter Length Width Break Load Safe Working Load 16743 Ø4 mm 30 mm — 1000 kg 400 kg 16744 Ø5 mm 38 mm 10 mm 1500 kg 600 kg 16745 Ø6 mm 45 mm 12 mm 1800 kg 900 kg 16746 Ø8 mm 58 mm 16 mm 4300 kg 1700 kg
Only specifications provided by the manufacturer are included. Values not supplied in the source data have intentionally been omitted.
Technical Specifications
Brand Plastimo Product Type Long Safety D Shackle Material Stainless Steel Design Long D Shackle Pin Type Captive Pin with Double-Thread Safety System Available Sizes Ø4 mm, Ø5 mm, Ø6 mm, Ø8 mm Applications Rigging, sailing, mooring, deck hardware, marine fastening
Applications
- Standing and running rigging
- Deck hardware installation
- Blocks and pulley connections
- Mooring systems
- Marine equipment fastening
- General-purpose outdoor applications
-
