ID
1384042
$ 207.77
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
Item:
- 5 pcs
- 10 pcs
The Wichard Self-Locking Large D Shackles, distributed by Plastimo, are premium marine-grade fastening components manufactured from AISI 316L stainless steel. Designed with Wichard's self-locking pin system for enhanced safety, these heavy-duty D shackles are available in 5 mm, 6 mm, 8 mm and 10 mm sizes, offering safe working loads from 176 kg to 640 kg and breaking loads up to 3,200 kg. Suitable for demanding sailing, rigging and marine applications where secure fastening and corrosion resistance are essential.
- Description
- Ask a Question
-

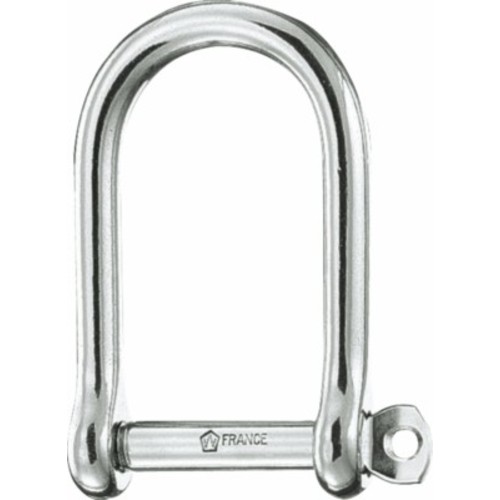

Wichard Self-Locking Large D Shackles Stainless Steel 316L
The Wichard Self-Locking Large D Shackles are premium marine fastening components manufactured from high-grade 316L stainless steel and supplied by Plastimo. Designed for professional sailing, rigging and general marine use, these shackles combine exceptional corrosion resistance with a patented self-locking pin system that helps prevent accidental loosening during operation.
The straight D-shackle profile provides high strength while maintaining a compact form factor, making these shackles ideal for standing rigging, blocks, travellers, deck hardware and numerous onboard fastening applications.
Key Features
- Original Wichard marine hardware
- Distributed by Plastimo
- Marine-grade stainless steel 316L construction
- Self-locking pin for increased safety
- Excellent corrosion resistance
- Heavy-duty forged construction
- Suitable for professional and recreational marine applications
Available Variations
Plastimo SKU Wichard P/N Pin Ø Inside Width Overall Length SWL Break Load 416914 W 1262 5 mm 20 mm 36 mm 176 kg 880 kg 416915 W 1263 6 mm 20.5 mm 42 mm 240 kg 1,200 kg 416916 W 1264 8 mm 32 mm 57 mm 432 kg 2,160 kg 416917 W 1265 10 mm 40 mm 72 mm 640 kg 3,200 kg
Technical Specifications
Brand Wichard Distributor SKU Plastimo 416914 / 416915 / 416916 / 416917 Wichard Part Numbers W 1262 / W 1263 / W 1264 / W 1265 Product Type Large Self-Locking D Shackle Material Stainless Steel 316L Pin Type Self-locking Available Sizes 5 mm, 6 mm, 8 mm, 10 mm Safe Working Load 176–640 kg Breaking Load 880–3,200 kg Applications Rigging, sailing hardware, deck fittings, blocks, marine fastening
Applications
- Standing and running rigging
- Blocks and pulley attachments
- Deck hardware installation
- Sailing and yachting equipment
- Mooring and general marine fastening
- Professional marine and industrial use
-
