The Plastimo Heavy Duty Galvanised Steel Bow Shackles are engineered for demanding lifting, mooring and rigging applications where high strength and reliability are essential. Manufactured from corrosion-resistant galvanized steel, these heavy-duty bow shackles are available in Ø20 mm, Ø22 mm, Ø28 mm and Ø32 mm sizes, providing safe working loads up to 3,500 kg for professional marine and industrial use.
- Description
- Ask a Question
-

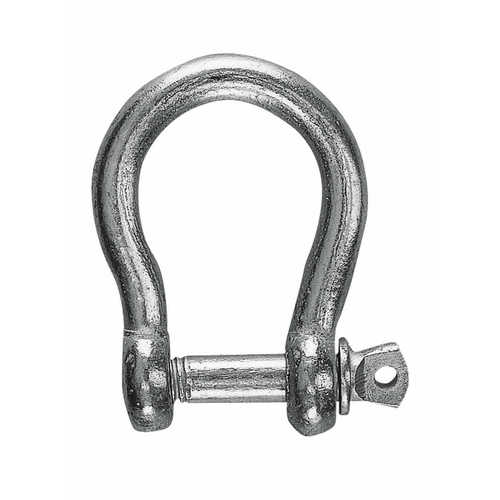

Plastimo Heavy Duty Galvanised Steel Bow Shackles
The Plastimo Heavy Duty Galvanised Steel Bow Shackles are designed for high-load fastening applications in marine, industrial and commercial environments. Manufactured from heavy-duty galvanized steel, they provide excellent corrosion resistance together with outstanding mechanical strength for long-term service.
The bow profile offers increased internal clearance compared to standard D shackles, allowing greater flexibility when connecting ropes, chains, slings and lifting equipment. These shackles are suitable for demanding mooring systems, anchor connections, towing operations and general rigging work.
Key Features
- Original Plastimo heavy-duty shackles
- Heavy-duty galvanized steel construction
- Bow design for multidirectional loading
- High corrosion resistance
- Designed for demanding marine and industrial applications
- High safe working loads
- Available in multiple heavy-duty sizes
Available Variations
Plastimo SKU Diameter Length Width Break Load Safe Working Load 401542 Ø20 mm 80 mm 38 mm 4,400 kg 1,100 kg 401543 Ø22 mm — — — — 401545 Ø28 mm 116 mm 56 mm 12,000 kg 3,000 kg 401546 Ø32 mm 129 mm 64 mm 14,000 kg 3,500 kg
Technical Specifications
Brand Plastimo Product Type Heavy Duty Bow Shackle Material Galvanised Steel Available Sizes Ø20 mm, Ø22 mm, Ø28 mm, Ø32 mm Break Load Range 4,400–14,000 kg* Safe Working Load Range 1,100–3,500 kg* Applications Mooring, lifting, towing, anchoring, rigging Environment Marine, industrial and outdoor use
*Technical load data is available for Ø20 mm, Ø28 mm and Ø32 mm variants. Specifications for the Ø22 mm version are not provided in the source data.
Applications
- Heavy-duty anchor systems
- Mooring installations
- Towing equipment
- Industrial lifting systems
- Marine rigging
- Commercial and professional outdoor applications
-
