ID
1383994
$ 21.79
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
- 12
- 16
Item:
- 2 pcs
The Plastimo Bow Stainless Steel Shackles are manufactured from marine-grade AISI 316 stainless steel for dependable performance in marine and industrial applications. Their rounded bow design provides increased internal clearance, making them ideal for connecting multiple lines, straps or fittings while reducing stress concentrations. Available in diameters from Ø4 mm to Ø16 mm, these corrosion-resistant shackles offer break loads of up to 6,800 kg depending on the selected size.
- Description
- Ask a Question
-

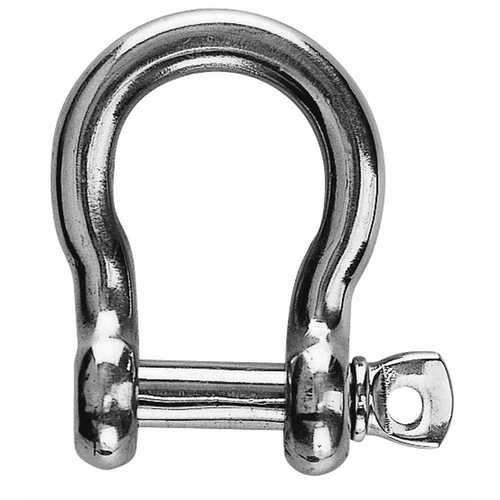

Plastimo Bow Stainless Steel Shackles
The Plastimo Bow Stainless Steel Shackles are designed for demanding marine, sailing and industrial applications where a strong, reliable and corrosion-resistant connection is required. Manufactured from premium AISI 316 stainless steel, these shackles provide excellent durability and long service life even in aggressive saltwater environments.
The bow-shaped body offers greater internal clearance than standard D-shackles, allowing multiple attachment points or wider fittings while distributing loads more efficiently. This makes them particularly suitable for rigging, mooring, lifting and general deck hardware installations.
Features
- Original Plastimo marine hardware
- Classic bow shackle design
- Manufactured from marine-grade AISI 316 stainless steel
- Excellent corrosion resistance
- High strength and long service life
- Suitable for sailing, rigging and general marine applications
- Available in diameters from Ø4 mm to Ø16 mm
Available Variations
Plastimo SKU OEM P/N Diameter Length Break Load Safe Working Load 29766 2410-0104 Ø4 mm 16 mm 800 kg 160 kg 29767 2410-0105 Ø5 mm — — — 29768 2410-0106 Ø6 mm — — — 29769 2410-0108 Ø8 mm 32 mm 2800 kg 625 kg 29770 2410-0110 Ø10 mm — — — 29771 2410-0112 Ø12 mm 48 mm 6800 kg 1500 kg 29772 2410-0116 Ø16 mm — — —
Only specifications provided by the manufacturer are included. Dimensions and load ratings not supplied in the source data are intentionally omitted.
Technical Specifications
Brand Plastimo Product Type Bow Shackle Material AISI 316 Stainless Steel Design Bow Available Sizes Ø4, Ø5, Ø6, Ø8, Ø10, Ø12 and Ø16 mm Corrosion Resistance Marine Grade Applications Rigging, mooring, sailing, deck hardware, lifting and general marine fastening
Applications
- Standing and running rigging
- Mooring systems
- Anchor and chain connections
- Deck hardware installation
- Blocks and pulleys
- Marine lifting points
- General-purpose fastening on board
-
