The Plastimo Stainless Steel Bow Shackles with Safety Double-Thread Pin are designed for secure marine fastening where maximum reliability and corrosion resistance are required. Their innovative double-thread pin system significantly reduces the risk of pin loss, as the pin remains engaged on a secondary thread until completely unscrewed. Manufactured from stainless steel and available in diameters from Ø5 mm to Ø12 mm, these bow shackles are suitable for rigging, mooring, anchoring and general deck hardware applications.
- Description
- Ask a Question
-

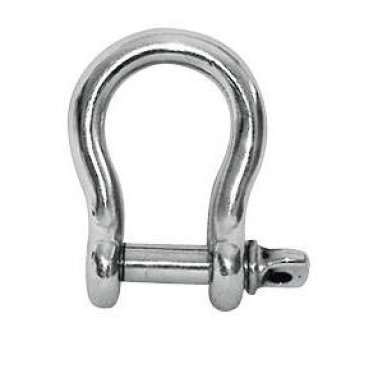

Plastimo Stainless Steel Bow Shackles with Safety Double-Thread Pin
The Plastimo Stainless Steel Bow Shackles are engineered for dependable marine fastening applications where strength, durability and operational safety are essential. Manufactured from corrosion-resistant stainless steel, these bow shackles feature an innovative double-thread pin system that minimizes the risk of accidental pin loss during operation.
Unlike conventional shackles, the pin engages two separate threads. When the shackle is opened, the pin remains supported by the secondary thread and can only be removed by completely unscrewing it. This design greatly improves safety during installation, maintenance and regular onboard use.
The rounded bow profile provides greater internal clearance than standard D shackles, making these models ideal for multi-directional loading, rope terminations, blocks, rigging and mooring hardware.
Key Features
- Original Plastimo marine hardware
- Bow shackle design for multi-directional loading
- Innovative double-thread safety pin
- Pin remains retained until fully unscrewed
- Reduced risk of accidental pin loss
- Corrosion-resistant stainless steel construction
- Suitable for marine and outdoor environments
- Ideal for rigging, sailing, mooring and deck hardware
Available Variations
Plastimo SKU Diameter Length (A) Width (B) Break Load Safe Working Load 422108 Ø5 mm 20 mm 10 mm 1000 kg 250 kg 422109 Ø6 mm 24 mm 12 mm 1500 kg 375 kg 422113 Ø8 mm 32 mm 16 mm 2900 kg 725 kg 422125 Ø10 mm 40 mm 20 mm 4300 kg 1075 kg 422137 Ø12 mm 48 mm 24 mm 6000 kg 1500 kg
Technical Specifications
Brand Plastimo Product Type Bow Shackle Material Stainless Steel Pin System Double-thread safety pin Available Diameters Ø5 mm, Ø6 mm, Ø8 mm, Ø10 mm, Ø12 mm Break Load Range 1000–6000 kg Safe Working Load Range 250–1500 kg Applications Rigging, mooring, anchoring, sailing, deck hardware, marine fastening
Applications
- Sailboat rigging
- Mooring systems
- Anchor connections
- Blocks and pulley attachments
- Deck fittings
- General marine fastening
-
