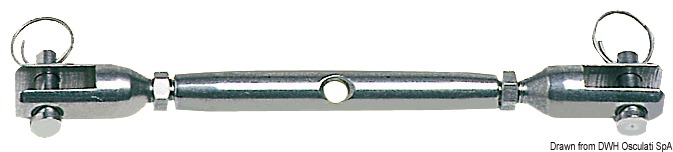

Osculati Turned Stainless Steel Rigging Screw – AISI 316, Fork-to-Fork Turnbuckle
The Osculati Turned Rigging Screw is a premium-quality fork-to-fork turnbuckle manufactured from mirror-polished AISI 316 stainless steel. Designed for marine environments, it offers excellent corrosion resistance together with precision-machined threads that provide smooth adjustment and a generous tensioning range.
The robust construction makes these rigging screws suitable for standing rigging, lifelines, guardrail systems and numerous marine tensioning applications where reliability and long service life are essential.
Key Features
- Manufactured from mirror-polished AISI 316 stainless steel
- Fork-to-fork turnbuckle design
- Precision-machined threads for smooth adjustment
- Long adjustment travel for accurate rigging tension
- Excellent corrosion resistance in marine environments
- Suitable for standing rigging, lifelines and deck hardware
Available Variants
Osculati Code Thread Working Load Overall Length (LG) 07.192.04 M4 410 kg 175 mm 07.192.05 M5 460 kg 195 mm 07.192.06 M6 910 kg 230 mm 07.192.08 M8 1330 kg 255 mm 07.192.10 M10 2180 kg 300 mm 07.192.12 M12 3200 kg 380 mm 07.192.14 M14 4300 kg 328 mm 07.192.16 M16 5310 kg 480 mm 07.192.20 M20 7940 kg 387 mm
Applications
These Osculati rigging screws are designed for precise tensioning of marine wire assemblies and are commonly used for:
- Standing rigging
- Lifelines and guardrails
- Stainless steel wire rope systems
- Deck fittings and structural tensioning
- General marine rigging applications
Available in multiple thread sizes and load ratings, the range allows boat owners and marine professionals to select the correct rigging screw for both recreational and commercial vessels.
-
