$ 4.28
1-2 weeks delivery time
Size:
- M4
- M5
- M6
- M8
- M10
The Osculati Eye-to-Eye Rigging Screws are manufactured from marine-grade AISI 316 stainless steel and are designed for tensioning lifelines, standing rigging, and stainless steel cable systems. Available with M4 to M10 threads, overall lengths from 100 to 240 mm, and working loads from 87 to 880 kg, these turnbuckles provide smooth adjustment and excellent corrosion resistance for marine applications.
- Description
- Ask a Question
-

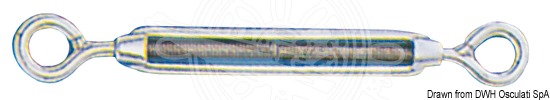

Osculati AISI 316 Eye-to-Eye Rigging Screws – M4-M10 Stainless Steel Turnbuckles
The Osculati Eye-to-Eye Rigging Screws are high-quality marine turnbuckles manufactured entirely from AISI 316 stainless steel. Featuring eye terminals at both ends, they provide a reliable solution for tensioning stainless steel wire ropes, lifelines, and standing rigging while offering excellent corrosion resistance in harsh marine environments.
The precision-machined body ensures smooth thread adjustment, allowing accurate cable tensioning for sailboats, motorboats, guardrails, and other marine installations.
Key Features
- Original Osculati marine rigging screw
- Manufactured from marine-grade AISI 316 stainless steel
- Eye terminal on both ends
- Precision threaded adjustment for accurate tensioning
- Mirror-polished corrosion-resistant finish
- Suitable for standing rigging, lifelines, guard wires, and marine cable systems
Available Variants
Osculati Code Thread (D1) L1 L Eye Ø (A) Working Load 07.193.04 M4 100 mm 60 mm 7 mm 87 kg 07.193.05 M5 120 mm 70 mm 8 mm 160 kg 07.193.06 M6 150 mm 90 mm 10 mm 320 kg 07.193.08 M8 200 mm 120 mm 14 mm 560 kg 07.193.10 M10 240 mm 150 mm 16 mm 880 kg
Applications
Ideal for sailboat standing rigging, lifelines, guard wires, architectural cable systems, and other marine applications where secure eye-to-eye connections and precise cable tension adjustment are required.
-
