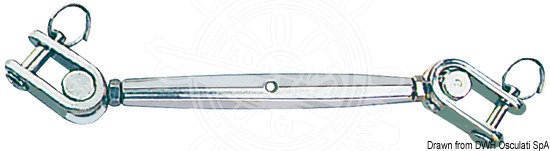

Osculati AISI 316 Turnbuckles with Two Articulated Jaws – M6-M12 Stainless Steel Rigging Screws
The Osculati Turnbuckles with Two Articulated Jaws are precision-manufactured from marine-grade AISI 316 stainless steel to provide dependable tension adjustment for standing rigging, lifelines, and other marine cable applications. Their articulated jaw terminals at both ends allow greater freedom of movement, helping to compensate for angular misalignment while maintaining a secure connection.
The mirror-polished AISI 316 construction offers excellent resistance to corrosion in saltwater environments, while the precision threaded body provides smooth and accurate rigging adjustment.
Key Features
- Original Osculati marine rigging screw
- Manufactured from marine-grade AISI 316 stainless steel
- Articulated jaw terminals on both ends
- Provides increased flexibility during installation
- Smooth precision thread for accurate rig tension adjustment
- Highly resistant to corrosion and marine environments
- Suitable for standing rigging, lifelines, guard wires, and marine cable systems
Available Variants
Osculati Code Thread (D1) L1 Overall Length (LG) Dimension A Dimension D Dimension H Working Load 07.195.06 M6 160 mm 230 mm 7 mm 6 mm 15 mm 600 kg 07.195.08 M8 190 mm 265 mm 10 mm 8 mm 20 mm 1000 kg 07.195.10 M10 230 mm 320 mm 12 mm 9 mm 25 mm 1400 kg 07.195.12 M12 280 mm 390 mm 13 mm 12 mm 30 mm 2400 kg
Applications
Ideal for sailboat standing rigging, lifeline systems, guard wires, and other marine cable installations where articulated jaw terminals provide improved alignment and reliable tension adjustment.
-
