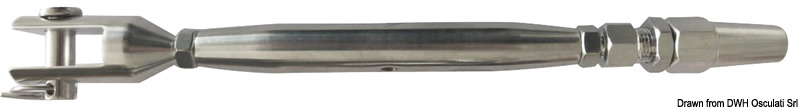

Osculati AISI 316 Self-Locking Rigging Screws with Terminal

ID 1381912

$ 35.13

1-2 weeks delivery time

Size:

Item:

3 mm Cable
4 mm Cable
5 mm Cable
6 mm Cable

The Osculati Self-Locking Rigging Screws with Terminal are manufactured from marine-grade AISI 316 stainless steel and feature an automatic self-locking cable terminal. The internal cone securely locks the wire rope during insertion, eliminating the need for additional fastening components. Available for 3-6 mm wire rope with M6 to M12 threads and working loads up to 571 kg.

Description
Ask a Question

Osculati AISI 316 Self-Locking Rigging Screws with Terminal – M6-M12 for 3-6 mm Wire Rope

The Osculati Self-Locking Rigging Screws with Terminal are designed for secure and precise tensioning of stainless steel wire rope in marine rigging systems. Manufactured from premium AISI 316 stainless steel, these rigging screws provide outstanding corrosion resistance and long-term durability in demanding saltwater environments.

The integrated self-locking terminal features an internal cone that automatically grips and locks the cable during installation, allowing for fast assembly while providing a secure and reliable connection without additional locking hardware.

Key Features

Original Osculati marine rigging screw
Manufactured from marine-grade AISI 316 stainless steel
Built-in self-locking cable terminal
Internal cone automatically locks the wire rope during insertion
Smooth and accurate thread adjustment
Excellent resistance to corrosion and marine weather
Ideal for lifelines, standing rigging, guardrails, and other marine cable systems

Available Variants

Osculati Code	Thread (D1)	Wire Rope Ø	Dimension A	Dimension B	Dimension C	Working Load
07.385.06	M6	3 mm	175 mm	245 mm	7.5 mm	170 kg
07.385.08	M8	4 mm	200 mm	285 mm	11 mm	304 kg
07.385.10	M10	5 mm	245 mm	335 mm	12 mm	474 kg
07.385.12	M12	6 mm	290 mm	405 mm	14 mm	571 kg

Applications

Suitable for marine lifelines, standing rigging, safety rail systems, guard wires, and other stainless steel cable installations where quick installation, secure cable locking, and precise tension adjustment are required.
