ID
1382225
$ 9.90
1-2 weeks delivery time
Size:
- M5
- M6
- M8
- M10
- M12
The Osculati Rigging Screws with Two Fixed Jaws are manufactured from marine-grade AISI 316 stainless steel for reliable tensioning of standing rigging, lifelines, and marine cable systems. Available with M5 to M12 threads, overall lengths from 120 to 300 mm, and working loads from 400 to 2400 kg, these turnbuckles provide excellent corrosion resistance and smooth adjustment in demanding marine environments.
- Description
- Ask a Question
-

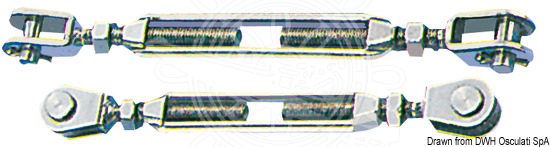

Osculati AISI 316 Rigging Screws with Two Fixed Jaws – M5-M12 Stainless Steel Turnbuckles
The Osculati Rigging Screws with Two Fixed Jaws are precision-engineered turnbuckles manufactured entirely from marine-grade AISI 316 stainless steel. Designed for accurate tension adjustment, they are ideal for standing rigging, lifelines, guard wires, and numerous marine fastening applications requiring high strength and excellent corrosion resistance.
The fixed jaw design provides secure attachment at both ends while allowing smooth and precise adjustment of cable tension. Their polished AISI 316 stainless steel construction ensures long service life in harsh saltwater conditions.
Key Features
- Original Osculati marine rigging screw
- Manufactured from marine-grade AISI 316 stainless steel
- Fixed jaw terminals on both ends
- Precision threaded adjustment for accurate rig tensioning
- Excellent resistance to corrosion and marine environments
- Suitable for standing rigging, lifelines, guardrails, and stainless steel cable systems
Available Variants
Osculati Code Thread (D1) L1 L Dimension A Dimension D Dimension H Working Load 07.198.05 M5 120 mm 70 mm 6.5 mm 5 mm 10 mm 400 kg 07.198.06 M6 140 mm 90 mm 7.5 mm 6 mm 10 mm 600 kg 07.198.08 M8 180 mm 120 mm 11 mm 8 mm 11 mm 1000 kg 07.198.10 M9 220 mm 150 mm 12 mm 9 mm 14 mm 1400 kg 07.198.12 M12 300 mm 200 mm 14 mm 12 mm 20 mm 2400 kg
Applications
Ideal for sailboat standing rigging, lifeline systems, guard wires, architectural cable assemblies, and other marine applications requiring reliable tension adjustment and maximum resistance to corrosion.
-
