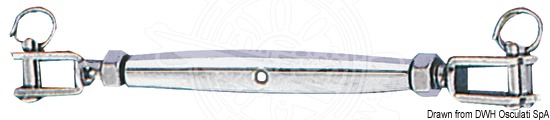

Osculati AISI 316 Jaw-to-Jaw Rigging Screws with Two Fixed Jaws

ID 1382231

$ 8.48

1-2 weeks delivery time

Size:

The Osculati Rigging Screws with Two Fixed Jaws are manufactured from marine-grade AISI 316 stainless steel for precise tensioning of standing rigging, lifelines, and marine cable systems. Featuring fixed jaw terminals on both ends, they are available with M4 to M16 threads, overall lengths from 160 to 450 mm, and breaking loads from 346.5 to 9075 kgf, offering exceptional strength and corrosion resistance for demanding marine applications.

Description
Ask a Question

Osculati AISI 316 Rigging Screws with Two Fixed Jaws – M4-M16 Stainless Steel Turnbuckles

The Osculati Rigging Screws with Two Fixed Jaws are premium marine turnbuckles manufactured entirely from AISI 316 stainless steel. Designed for heavy-duty rigging applications, they provide reliable tension adjustment for standing rigging, lifelines, guard wires, and stainless steel cable systems while delivering excellent corrosion resistance in marine environments.

The fixed jaw terminals at both ends ensure secure attachment, while the precision-machined threaded body allows smooth and accurate adjustment. Their robust construction makes them suitable for both sailing yachts and professional marine installations where dependable performance is essential.

Key Features

Original Osculati marine rigging screw
Manufactured from marine-grade AISI 316 stainless steel
Fixed jaw terminals on both ends
Precision threaded body for accurate rig tension adjustment
Mirror-polished finish with excellent corrosion resistance
Suitable for standing rigging, lifelines, guard wires, and stainless steel cable systems
High breaking load for demanding marine applications

Available Variants

Osculati Code	Thread (D1)	L1	Overall Length (LG)	Dimension A	Dimension D	Dimension H	Breaking Load
07.197.04	M4	110 mm	160 mm	5.5 mm	4 mm	8 mm	346.5 kgf
07.197.05	M5	130 mm	190 mm	6.5 mm	5 mm	10 mm	571 kgf
07.197.06	M6	150 mm	220 mm	7.5 mm	6 mm	10 mm	785 kgf
07.197.08	M8	165 mm	240 mm	11 mm	8 mm	11 mm	1417 kgf
07.197.10	M10	190 mm	280 mm	12 mm	9 mm	14 mm	2223 kgf
07.197.12	M12	245 mm	360 mm	14 mm	12 mm	20 mm	3263 kgf
07.197.14	M14	270 mm	390 mm	15 mm	12 mm	22 mm	4445 kgf
07.197.16	M16	310 mm	450 mm	17 mm	16 mm	26 mm	9075 kgf

Applications

Ideal for sailboat standing rigging, lifeline systems, guard wires, mast rigging, and other marine cable installations where high-strength fixed jaw connections and precise tension adjustment are required.
