Galvanized Steel Bow Shackles

ID 1383752

$ 0.65

1-2 weeks delivery time

Diameter, mm:

Galvanized Steel Bow Shackles are designed for lifting, rigging, mooring and general fastening applications where a wider bow provides greater flexibility for multi-directional loading. Manufactured from galvanized steel for enhanced corrosion resistance, these shackles are available in diameters from 5 mm to 38 mm, making them suitable for both light-duty and heavy-duty marine and industrial use.

Description
Ask a Question

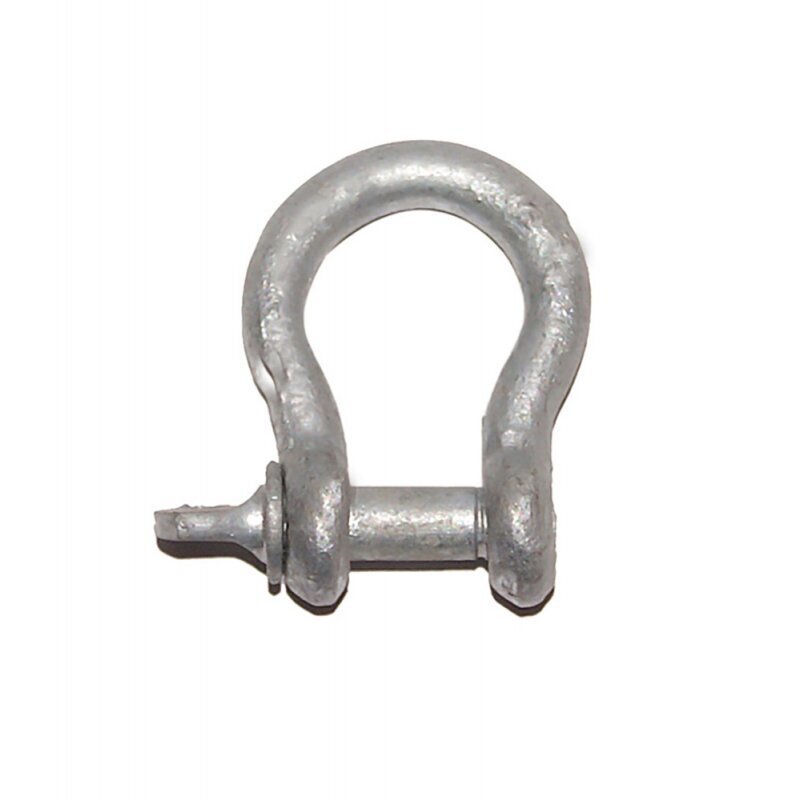

Galvanized Steel Bow Shackles

These bow shackles are manufactured from galvanized steel to provide reliable strength and corrosion resistance in demanding marine, industrial and outdoor environments. The rounded bow design offers a larger internal working area than standard D-shackles, making them suitable for connecting multiple slings, ropes, chains or lifting components while distributing loads more efficiently.

This trade offer combines all available sizes into one product with selectable diameter options.

Features

Manufactured from galvanized steel
Corrosion-resistant zinc coating
Wide bow design for increased connection space
Suitable for lifting, rigging and mooring applications
Forged heavy-duty construction
Compatible with chains, ropes and lifting slings
Available in multiple diameters
Sold individually

Available Variations

Article No.	Pin Ø (mm)	A (mm)	B (mm)	C (mm)	D (mm)
0404035	5	20	9	32	17
0404036	6	26	14	41	21
0404038	8	33	16	52	24
0404040	10	36	19	61	29
0404042	12	50	26	78	40
0404044	14	60	28	92	47
0404046	16	66	31	105	51
0404048	18	70	35	113	54
0404050	20	80	35	128	57
0404052	22	88	44	130	64
0404055	25	87	44	137	75
0404060	32	115	57	189	100
0404068	38	155	75	230	115

Specifications

Material	Galvanized Steel
Product Type	Bow Shackle
Available Diameters	5 mm to 38 mm
Sales Unit	1 Piece

Applications

Anchor systems
Mooring equipment
Marine rigging
Lifting slings
Chain and rope connections
Industrial fastening applications
