ID
1383782
$ 1.07
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
- 12
- 14
- 16
- 19
- 22
AISI 316 Stainless Steel Bow Shackles are designed for marine fastening applications requiring a wider internal opening than standard D-shackles. The rounded bow provides additional space for connecting ropes, chains and multiple fittings, while the AISI 316 stainless steel construction offers excellent resistance to corrosion in saltwater environments. The range includes ten sizes from 4 mm to 22 mm with all article numbers and dimensions listed for accurate selection.
- Description
- Ask a Question
-

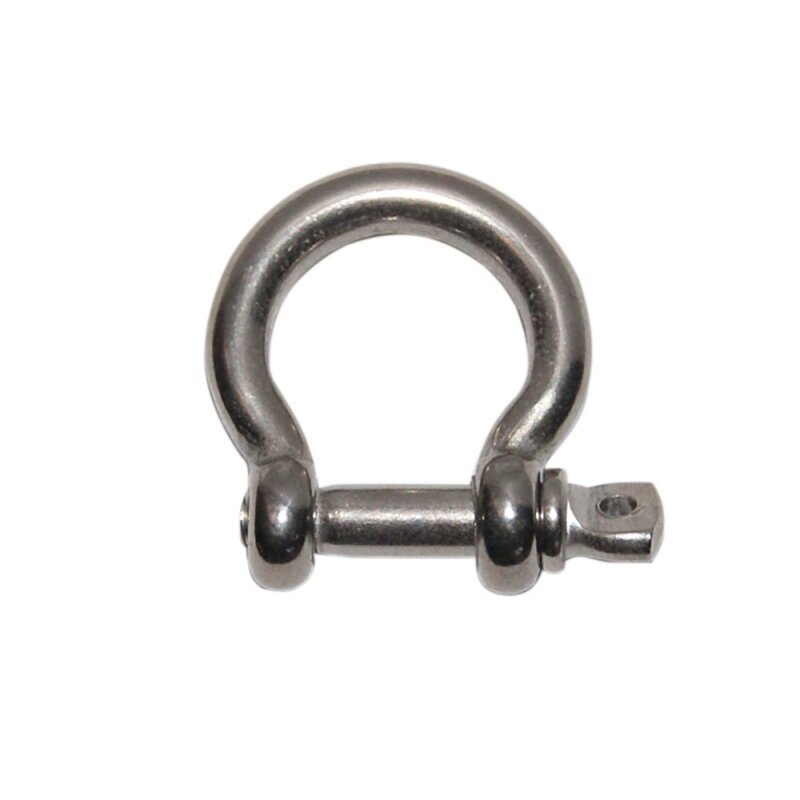

AISI 316 Stainless Steel Bow Shackles
These bow shackles are manufactured from AISI 316 stainless steel for reliable use in marine and outdoor environments. The rounded bow design provides a larger internal connection area than a standard D-shackle, making the shackles suitable for joining ropes, chains, anchor fittings and other marine hardware.
The range includes ten diameter options from 4 mm to 22 mm. Each variation is listed below with the corresponding article number and dimensions.
Features
- Manufactured from AISI 316 stainless steel
- Excellent resistance to seawater corrosion
- Wide bow design with increased internal clearance
- Suitable for ropes, chains and marine fittings
- Available in diameters from 4 mm to 22 mm
- Suitable for marine, rigging and general fastening applications
Available Variations
Article No. Diameter Ø A B C D 0404304 4 mm 14 mm 8 mm 29 mm 14 mm 0404305 5 mm 18 mm 10 mm 32 mm 17 mm 0404306 6 mm 21 mm 12 mm 40 mm 21 mm 0404308 8 mm 28 mm 16 mm 54 mm 28 mm 0404310 10 mm 35 mm 20 mm 66 mm 35 mm 0404312 12 mm 42 mm 24 mm 70 mm 42 mm 0404314 14 mm 49 mm 28 mm 80 mm 49 mm 0404316 16 mm 58 mm 32 mm 90 mm 56 mm 0404319 19 mm 66 mm 38 mm 109 mm 66 mm 0404322 22 mm 78 mm 44 mm 110 mm 77 mm
Technical Specifications
Material AISI 316 Stainless Steel Product Type Bow Shackle Available Diameters 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 19 mm, 22 mm Available Articles 0404304, 0404305, 0404306, 0404308, 0404310, 0404312, 0404314, 0404316, 0404319, 0404322
Applications
- Anchor equipment connections
- Mooring systems
- Marine rigging
- Chain and rope connections
- Deck hardware
- General marine fastening
-
