ID
1383793
$ 1.86
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
- 12

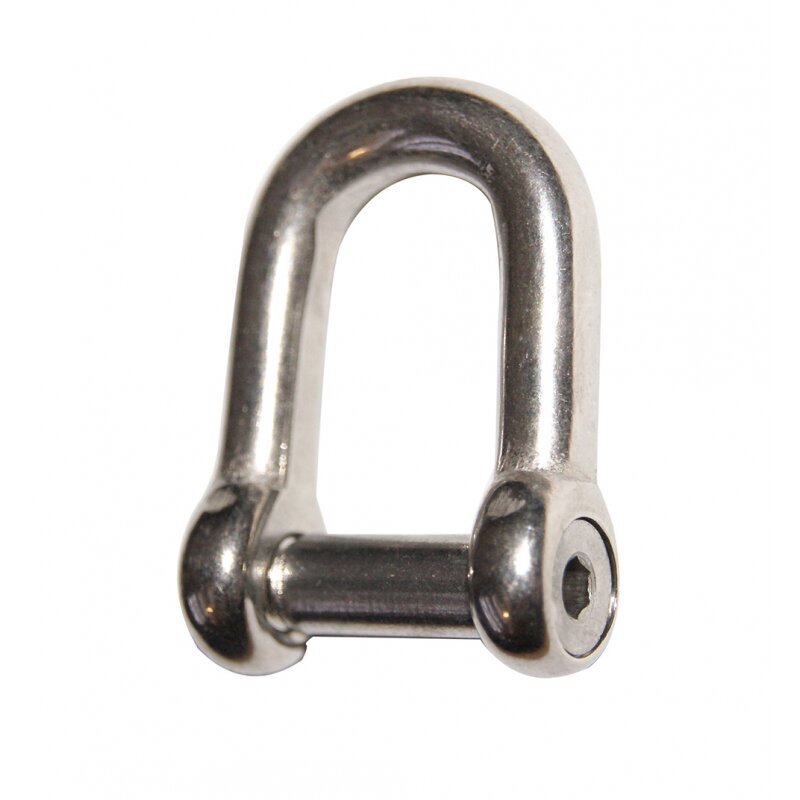

AISI 316 Stainless Steel Flush Pin D-Shackles are designed for marine applications where a smooth, low-profile connection is required. Each shackle features a flush hex socket screw pin that sits neatly within the body, reducing the risk of snagging while providing a secure fastening solution. Manufactured from marine-grade AISI 316 stainless steel, the range offers excellent corrosion resistance and includes five sizes from 5 mm to 12 mm.
- Description
- Ask a Question
-
AISI 316 Stainless Steel Flush Pin D-Shackles with Hex Socket Pin
These flush pin D-shackles are manufactured from AISI 316 stainless steel for long-lasting performance in marine and outdoor environments. The flush-mounted hex socket screw pin provides a clean, compact profile while maintaining a secure mechanical connection.
The low-profile pin design helps reduce snagging on ropes and fittings, making these shackles suitable for anchor systems, deck hardware, rigging and other marine applications where a smooth finish is preferred.
Features
- Manufactured from AISI 316 stainless steel
- Flush-mounted hex socket screw pin
- Low-profile design reduces snagging
- Excellent resistance to seawater corrosion
- Suitable for anchor, rigging and deck hardware applications
- Available in diameters from 5 mm to 12 mm
Available Variations
Article No. Diameter Ø A B C Head Type 0404405 5 mm 18 mm 10 mm 29 mm Hex Socket 0404406 6 mm 21 mm 12 mm 35 mm Hex Socket 0404408 8 mm 28 mm 16 mm 47 mm Hex Socket 0404410 10 mm 35 mm 20 mm 60 mm Hex Socket 0404412 12 mm 42 mm 24 mm 70 mm Hex Socket
Technical Specifications
Material AISI 316 Stainless Steel Product Type Flush Pin D-Shackle Pin Type Flush Hex Socket Screw Pin Available Diameters 5 mm, 6 mm, 8 mm, 10 mm, 12 mm Available Articles 0404405, 0404406, 0404408, 0404410, 0404412
Applications
- Anchor connections
- Marine rigging
- Deck hardware
- Chain and rope connections
- Mooring equipment
- General marine fastening
-
