ID
1383804
$ 2.07
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
- 12
AISI 316 Stainless Steel Twisted Shackles are designed for applications where the load direction requires a 90° twist between the pin and body. Manufactured from marine-grade AISI 316 stainless steel, these shackles provide excellent corrosion resistance and reliable strength for marine rigging, anchor systems, lifting equipment, and deck hardware. Available in diameters from 4 mm to 12 mm.
- Description
- Ask a Question
-

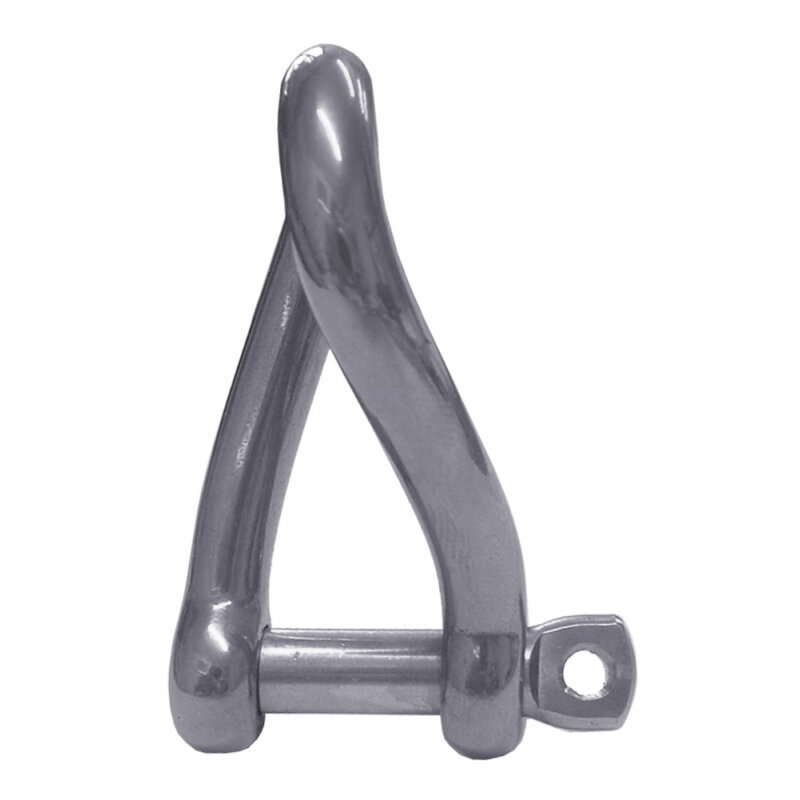

AISI 316 Stainless Steel Twisted Shackles
AISI 316 Stainless Steel Twisted Shackles are specifically designed for applications where the attachment points are positioned at different angles. The twisted body provides a 90° orientation between the bow and the pin, reducing unnecessary twisting of ropes, chains and fittings while maintaining a secure connection.
Manufactured from marine-grade AISI 316 stainless steel, these shackles offer outstanding corrosion resistance and long service life in seawater and harsh outdoor environments. They are suitable for marine rigging, anchor systems, sailing hardware, lifting equipment and general fastening applications.
Features
- Manufactured from premium AISI 316 stainless steel
- Twisted body for 90° load alignment
- Excellent corrosion resistance in marine environments
- Ideal for offset or angled connections
- Strong forged construction
- Suitable for ropes, chains, wire rope and marine hardware
- Available in six diameters from 4 mm to 12 mm
Available Variations
Article No. Diameter Ø A B C 0404504 4 mm 24 mm 8 mm 40 mm 0404505 5 mm 30 mm 10 mm 50 mm 0404506 6 mm 36 mm 12 mm 55 mm 0404508 8 mm 48 mm 16 mm 78 mm 0404510 10 mm 60 mm 20 mm 95 mm 0404512 12 mm 70 mm 24 mm 110 mm
Technical Specifications
Material AISI 316 Stainless Steel Product Type Twisted Shackle Construction 90° Twisted Body Available Diameters 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm Available Articles 0404504, 0404505, 0404506, 0404508, 0404510, 0404512
Applications
- Marine rigging
- Anchor systems
- Sailing hardware
- Deck fittings
- Chain and rope connections
- Wire rope assemblies
- General marine fastening
-
