ID
1383765
$ 0.98
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
- 12
- 14
- 16
- 20
- 22
AISI 316 Stainless Steel D-Shackles are designed for reliable fastening in marine, rigging and outdoor applications. The marine-grade stainless steel construction provides excellent corrosion resistance, while the compact D-shaped body is suitable for connecting chains, ropes, anchor equipment and deck hardware. The range includes ten sizes from 4 mm to 22 mm, with all article numbers and dimensions listed for accurate selection.
- Description
- Ask a Question
-

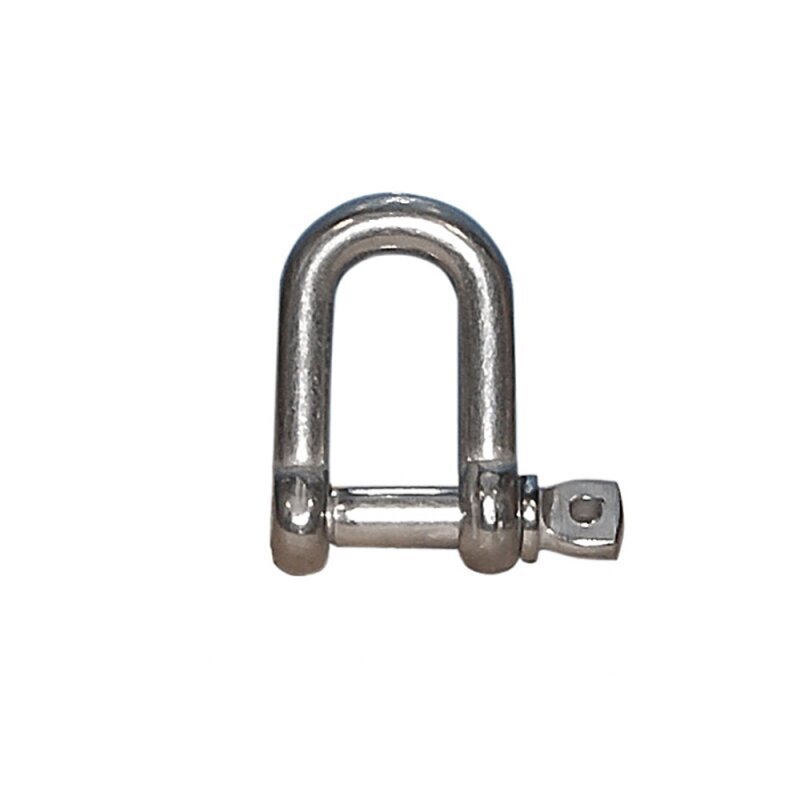

AISI 316 Stainless Steel D-Shackles
These D-shackles are manufactured from AISI 316 stainless steel for reliable use in marine and outdoor environments. The material provides excellent resistance to corrosion, while the compact D-shaped construction is suitable for secure connections where loads are primarily applied in line with the shackle body.
The range includes multiple diameters from 4 mm to 22 mm for connecting anchor components, chains, ropes, rigging fittings and other marine hardware.
Features
- Manufactured from AISI 316 stainless steel
- Excellent resistance to marine corrosion
- Compact D-shaped construction
- Suitable for chains, ropes and marine fittings
- Available in diameters from 4 mm to 22 mm
- Multiple dimensions for different connection requirements
Available Variations
Article No. Diameter Ø A B C 0404104 4 mm 14 mm 8 mm 25 mm 0404105 5 mm 18 mm 10 mm 30 mm 0404106 6 mm 21 mm 12 mm 36 mm 0404108 8 mm 28 mm 16 mm 48 mm 0404110 10 mm 35 mm 20 mm 60 mm 0404112 12 mm 42 mm 24 mm 70 mm 0404114 14 mm 49 mm 28 mm 83 mm 0404116 16 mm 58 mm 32 mm 94 mm 0404119 20 mm 66 mm 38 mm 113 mm 0404122 22 mm 77 mm 44 mm 130 mm
Technical Specifications
Material AISI 316 Stainless Steel Product Type D-Shackle Available Diameters 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 20 mm, 22 mm
Applications
- Anchor equipment connections
- Marine rigging
- Chain and rope connections
- Mooring equipment
- Deck hardware
- General marine fastening
-
